Lenovo ThinkEdge SE455 V3 Server

The Lenovo ThinkEdge SE455 V3 is a single-socket server, with a 2U height and short depth case that can be mounted in a 2-post or 4-post rack. This rugged edge server can handle continuous operating temperatures from 5°C and 55°C as has tolerance to locations with high-dust and vibration.

The ThinkEdge SE455 V3 is based on the new AMD EPYC 8004 Series "Siena" processor and is designed to virtualize traditional IT applications as well as new transformative AI systems, providing the processing power, storage, accelerator, and networking technologies required for today’s edge workloads. Lenovo’s innovation makes the ThinkEdge SE455 V3 one of the most powerful, yet quiet servers on the market, allowing it to be deployed next to end users without disturbing the workplace.

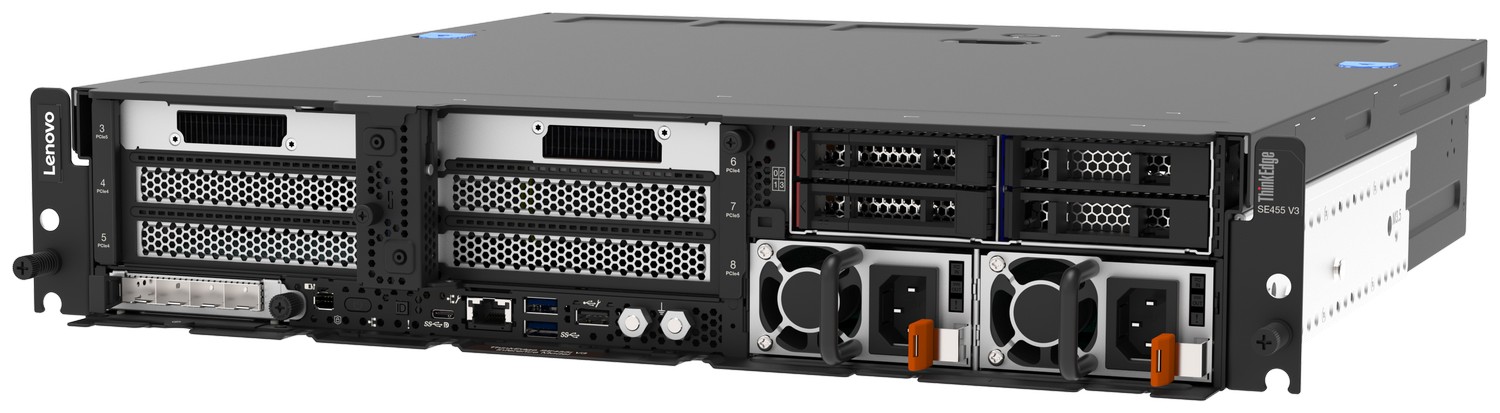

Figure 1. Lenovo ThinkEdge SE455 V3

Customers with remote locations have had to make a choice between underpowered IOT gateways and PCs, or overpowered and non-rugged data center servers. With the SE455 V3, they have an option: a compact edge server designed specifically to meet the needs of remote locations with the processing power to run AI workloads.

The ThinkEdge SE455 V3 is a purpose-built server that is significantly shorter than a traditional server, making it ideal for deployment in tight spaces. The ThinkEdge SE455 V3 puts increased processing power, storage and network closer to where data is generated, allowing actions resulting from the analysis of that data to take place more quickly.

Since these edge servers are typically deployed outside of secure data centers, they include technology that encrypts the data stored on the device, protecting the data if the system is is tampered with, only enabling authorized users to access it.

Scalability and performance

The SE455 V3 offers numerous features to boost performance, improve scalability and reduce costs:

• Support for a single processor from the powerful AMD EPYC 8004 ("Siena") processor family, designed to optimize "performance per watt"
  • Up to 64 cores
  • Core speeds of up to 2.65 GHz
  • TDP ratings of up to 225W
• Support for up to 6 TruDDR5 memory DIMMs and up to 576 GB of memory using 96 GB DIMMs
• DIMMs operate at up to 4800 MHz for a fast memory subsystem
• Supports up to 6x single-width GPUs or 2x double-wide GPUs, for substantial processing power in an edge system.
• Supports up to 6x AMD Alveo V70 Datacenter Accelerator adapters, tuned for video analytics and natural language processing workloads
• Support for up to 8x 2.5-inch drive bays, 4x hot-swap drives at the front of the server, and 4x non-hot swap drives internal to the server. Optional RAID with the addition of a RAID adapter installed in a slot.
• Supports M.2 drives for convenient operating system boot functions. Available M.2 adapters support either one M.2 drive or two M.2 drives. M.2 with RAID is available using a PCIe RAID adapter or with a B540i-2i M.2 adapter with integrated RAID.
• Supports 8x NVMe drives without oversubscription of PCIe lanes (1:1 connectivity). The use of NVMe drives maximizes drive I/O performance, in terms of throughput and latency.
• Supports up to 6x full-height PCIe slots, all front accessible, plus an additional OCP adapter slot
• The server has a dedicated industry-standard OCP 3.0 small form factor (SFF) slot supporting a variety of Ethernet network adapters. Simple-swap mechanism with thumbscrews and pull-tab enables tool-less installation and removal of the adapter. Supports shared BMC network sideband connectivity to enable out-of-band systems management.
• The server offers PCI Express 5.0 (PCIe Gen 5) I/O expansion capabilities that doubles the theoretical maximum bandwidth of PCIe 4.0 (32GT/s in each direction for PCIe 5.0, compared to 16 GT/s with PCIe 4.0). A PCIe 5.0 x16 slot provides 128 GB/s bandwidth, enough to support a 400GbE network connection.

Availability and serviceability

The SE455 V3 provides many features to simplify serviceability and increase system uptime:

• Designed to run 24 hours a day, 7 days a week
• The server uses ECC memory and supports memory RAS features including Advanced Memory Device Correction (AMDC), Patrol/Demand Scrubbing, DRAM Address Command Parity with Replay, DRAM Uncorrected ECC Error Retry, On-die ECC, ECC Error Check and Scrub (ECS), and Post Package Repair.
• The server offers hot-swap drives, supporting hardware RAID redundancy for data protection and greater system uptime.
• The server has up to two hot-swap redundant power supplies and up to five simple-swap fans with N+1 rotor redundancy to provide availability for business-critical applications.
• Solid-state drives (SSDs) offer more reliability and performance than traditional mechanical HDDs for greater uptime.
• Proactive Platform Alerts (including PFA and SMART alerts): Processors, voltage regulators, memory, internal storage (SAS/SATA SSDs, NVMe SSDs, M.2 storage), fans, power supplies, RAID controllers, server ambient and subcomponent temperatures. Alerts can be surfaced through the XClarity Controller to managers such as Lenovo XClarity Administrator, VMware vCenter, and Microsoft System Center. These proactive alerts let you take appropriate actions in advance of possible failure, thereby increasing server uptime and application availability.
• The built-in XClarity Controller 2 continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failures to minimize downtime.
• Built-in diagnostics in UEFI, using Lenovo XClarity Provisioning Manager, speed up troubleshooting tasks to reduce service time.
• Lenovo XClarity Provisioning Manager supports diagnostics and can save service data to a USB key drive or remote CIFS share folder for troubleshooting and reduce service time.
• Auto restart in the event of a momentary loss of AC power (based on power policy setting in the XClarity Controller service processor)
• Offers a diagnostics port on the front of the server to allow you to attach an external diagnostics handset for enhanced systems management capabilities.
• Support for the XClarity Administrator Mobile app running on a supported smartphone and connected to the server through the service-enabled USB port, enables additional local systems management functions.
• Three-year or one-year customer-replaceable unit and onsite limited warranty, 9 x 5 next business day. Optional service upgrades are available.

Manageability and security

Systems management features simplify local and remote management of the SE455 V3:

• The server includes an XClarity Controller 2 (XCC2) to monitor server availability. Optional upgrade to XCC Platinum to provide remote control (keyboard video mouse) functions, support for the mounting of remote media files, FIPS 140-3 security, enhanced NIST 800-193 support, boot capture, power capping, and other management and security features.
• Supports Lockdown Mode Control, to ensures that the system is only used by its intended recipient and that all data and applications remain secure if the tamper detection sensors are triggered.
• Lenovo XClarity Administrator offers comprehensive hardware management tools that help to increase uptime, reduce costs and improve productivity through advanced server management capabilities.
• UEFI-based Lenovo XClarity Provisioning Manager, accessible from F1 during boot, provides system inventory information, graphical UEFI Setup, platform update function, RAID Setup wizard, operating system installation function, and diagnostic functions.
• Support for Lenovo XClarity Energy Manager which captures real-time power and temperature data from the server and provides automated controls to lower energy costs.
• An integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
• Support for industry standard management protocols, IPMI 2.0, SNMP 3.0, Redfish REST API, serial console via IPMI
• An integrated hardware Trusted Platform Module (TPM) supporting TPM 2.0 enables advanced cryptographic functionality, such as digital signatures and remote attestation.
• Administrator and power-on passwords help protect from unauthorized access to the server.
• Supports AMD Infinity Guide security features, including Secure Memory Encryption, Secure Encrypted Virtualization and Secure Nested Paging.
• Supports Secure Boot to ensure only a digitally signed operating system can be used.
• Industry-standard Advanced Encryption Standard (AES) NI support for faster, stronger encryption.
• Additional physical security features include a lockable front bezel and top cover and secure EIA rack attachment brackets.

The following figure shows the front view of the ThinkEdge SE455 V3 server. For a closeup of the System LEDs, see the Local management section.

Figure 2. Front view of the ThinkEdge SE455 V3

The following figure shows the architectural block diagram of the SE455 V3 system, showing the major components and connections. The processor offers 96 PCIe lanes to devices — a mix of Gen4 and Gen5 — and the SE455 V3 presents those as a combination of PCIe slots, an OCP slot, and NVMe drives.

As shown in the figure, the server supports up to 8x NVMe drives, however some drives share connections with slot 6 & 8; this means that in some configurations, slot 6 & 8 are not available. See the Configurations section for details.

Figure 7. SE455 V3 architectural block diagram

The following table lists the standard specifications of the SE455 V3.

ThinkEdge SE455 V3 models can be configured by using the Lenovo Data Center Solution Configurator (DCSC).

Topics in this section:

• CTO models
• Base feature code
• Preconfigured models

CTO models

ThinkEdge SE455 V3 models can be configured by using the Lenovo Data Center Solution Configurator (DCSC).

Preconfigured server models may also be available for the SE455 V3, however these are region-specific; that is, each region may define their own server models, and not all server models are available in every region.

The following table lists the base CTO models of the ThinkEdge SE455 V3 server.

Base feature code

The following table lists the base feature code for the server.

Preconfigured models

The following tables list the available preconfigured models, grouped by region.

• Models for Asia Pacific region
• Models for EMEA region

Refer to the Specifications section for information about standard features of the server.

The following tables list the supported combinations of slots, adapters and drives, based on the number of double-wide (DW) GPUs installed:

• Configurations without any DW GPUs
• Configurations with 1x DW GPU
• Configurations with 2x DW GPUs

Configuration notes:

• GPUs and Riser 2 can be added as field upgrades
• Front drive bays are standard in all configuration; Internal drive bays are optional and can be added or removed using field upgrade parts
• When 1 DW GPU is installed, it is installed in slot 7; slot 6 must remain empty
• When 2 DW GPUs are installed, they are installed in slot 3 and slot 7; slots 4 and slot 6 must remain empty
• In some configurations, PCIe slots 6 & 8 of Riser 2 share one of the onboard NVMe ports used by the drive bays. As a result, If the internal drive bays are NVMe and the front drives are connected to onboard SATA or NVMe, then slots 6 and 8 in Riser 2 are not connected. Slot 7 is still available, however.

The SE455 V3 supports a single processor in the 4th Gen AMD 8004 Series (formerly codenamed "Siena") based on the AMD Zen 4c architecture.

In this section:

• Processor options
• Processor features
• Heatsink
• UEFI operating modes

Heatsink

For factory orders, the SE455 V3 supports either a 1U or 2U processor heatsink, as listed in the following table. Field upgrades are not supported.

The 2U heatsink is recommended to maximize heat dissipation and minimize fan noise, and is the default selection in the DCSC configurator.

The 1U heatsink is required for full-length adapters, however it does have the following requirements:

• Processor with TDP ≤ 130W
• Ambient temperature ≤ 45°C

The following table lists the feature codes that allow you to specify the mode you wish to preset in the factory for CTO orders.

The preset modes for the SE455 V3 are as follows:

• Maximum Efficiency Mode (feature BFYA): Maximizes performance/watt efficiency while maintaining reasonable performance
• Maximum Performance Mode (feature BFYB): Achieves maximum performance but with higher power consumption and lower energy efficiency.

Configuration notes:

• If either acoustic mode is selected in the DCSC configurator, Maximum Performance Mode (feature BFYB) is not available. For more information about the acoustic modes, see the Acoustic modes section

The SE455 V3 uses Lenovo TruDDR5 memory operating at up to 4800 MHz. The server supports 6 DIMMs. The processor has 6 memory channels and supports 1 DIMM per channel.

The following table lists the memory options that are available for the server.

Lenovo TruDDR5 memory uses the highest quality components that are sourced from Tier 1 DRAM suppliers and only memory that meets the strict requirements of Lenovo is selected. It is compatibility tested and tuned to maximize performance and reliability. From a service and support standpoint, Lenovo TruDDR5 memory automatically assumes the system warranty, and Lenovo provides service and support worldwide.

The following rules apply when selecting the memory configuration:

• The server supports quantities 1, 2, 4, or 6 DIMMs; other quantities not supported
• Mixing not supported:
  • Mixing 16Gb and 24Gb DIMMs is not supported (see the column in the above table)
  • Mixing x4 and x8 is not supported (see the descriptions of the DIMMs)
• Mixing of DIMM rank counts (1R, 2R) is supported, provided the above mixing rules are met. Follow the required installation order installing the DIMMs with the higher rank counts first.
• Mixing of DIMM capacities is supported, provided the above mixing rules are met. Follow the required installation order installing the larger DIMMs first.

Note: Memory mirroring and memory rank sparing are not supported.

The SE455 V3 offers the following internal storage options:

• 4x 2.5-inch front hot-swap drive bays, supporting SATA or NVMe SSD drives with hot-swap trays
• 4x 2.5-inch internal non-hot-swap drive bays, supporting SATA or NVMe SSD drives. Drives are mounted in a cage that rotates up for easy access.
• Up to 2x M.2 drives for boot functions, supporting SATA or NVMe drives (optional RAID using a separate PCIe adapter)

The locations of these drive bays is shown in the following figure.

Figure 8. SE455 V3 drive bays

In this section:

• Front hot-swap drive bays
• Internal drive bays
• Supported drive bay combinations
• Storage field upgrades
• M.2 drives
• RAID flash power module (supercap) support

Front hot-swap drive bays

The SE455 V3 supports 4x 2.5-inch hot-swap drive bays at the front of the server, using the backplanes listed in the following table.

Configuration requirements:

• Front drive bays are standard in all configurations of the SE455 V3 and cannot be deselected
• Drives supported are either SATA or NVMe, depending on the backplane selected.
• NVMe drives have a PCIe Gen 4 connection
• SAS drives are currently not supported (once supported, the use of SAS drives require a RAID adapter or SAS HBA)

Internal drive bays

The SE455 V3 supports 4x 2.5-inch drive bays internal to the server on the right side as shown in the figure above.

The drives are installed in a cage that rotates up for easy access, and are mounted with hot-swap drive trays, however they are not considered hot-swap. This is because the SE455 V3 does not support in-rack servicing, which means that the server must be powered off and removed from the rack before the top cover can be opened.

The backplanes for the internal drive bays are listed in the following table.

Configuration requirements:

• Internal drive bays are optional.
• Drives supported are either SATA or NVMe, depending on the backplane selected.
• NVMe drives have a PCIe Gen 4 connection
• The front and internal backplanes can be different (they don't both have to be SATA backplanes for example).
• SAS drives are currently not supported (once supported, the use of SAS drives require a RAID adapter or SAS HBA).
• PCIe slots 6 & 8 of Riser 2 share one of the onboard NVMe ports used by the drive bays. As a result, If the internal drive bays are NVMe and the front drives are connected to onboard SATA or NVMe, then slots 6 and 8 in Riser 2 are not connected. Slot 7 is still available, however. See the Configurations section for specifics.

Supported drive bay combinations

The following table lists the supported drive bay combinations.

Storage field upgrades

The following field upgrades are supported:

• Convert a configuration from an onboard controller to a RAID adapter or SAS HBA
• Convert a configuration from a RAID adapter or SAS HBA to an onboard controller
• Change the front hot-swap drive bays from NVMe to SATA, or from SATA to NVMe
• Change the internal drive bays from NVMe to SATA, or from SATA to NVMe
• Add the internal drive bays, either SATA or NVMe
• Remove the internal drive bays

The following table lists the part numbers for upgrading the front drive bays.

The following table lists the part numbers for upgrading the internal drive bays.

If you wish to remove the internal drive bay, you will need to add the air baffle to ensure proper air flow to the M.2 adapter. Ordering information is listed in the following table.

The ThinkSystem M.2 SATA/x4 NVMe 2-Bay Adapter (4Y37A79663) has the following features:

• Supports one or two M.2 drives, either SATA or NVMe
• When two drives installed, they must be either both SATA or both NVMe
• NVMe is supported by using a cable that connects to an onboard NVMe port
• SATA is only supported by connecting to a RAID 5350-8i adapter; no onboard SATA port is supported
• Support 42mm, 60mm, 80mm and 110mm drive form factors (2242, 2260, 2280 and 22110)
• RAID support is implemented using a separate RAID adapter
• Either 6Gbps SATA or PCIe 3.0 x4 interface to the drives depending on the drives installed
• Supports monitoring and reporting of events and temperature through I2C
• Firmware update via Lenovo firmware update tools
• When connected to a separate PCIe RAID adapter, supports SED drive encryption via the RAID adapter, otherwise no SED support

The ThinkSystem M.2 RAID B540i-2i SATA/NVMe Adapter (4Y37A90063) has the following features:

• Supports one or two M.2 drives, either SATA or NVMe
• Support 42mm, 60mm, 80mm and 110mm drive form factors (2242, 2260, 2280 and 22110)
• RAID support via an onboard Broadcom SAS3808N RAID Controller
• With 1 drive, supports JBOD
• With 2 drives, supports 2-drive RAID-0, 2-drive RAID-1, or JBOD
• PCIe 4.0 x2 host interface; PCIe 4.0 x1 connection to each drive
• Management and configuration support via UEFI and OS-based tools
• Supports monitoring and reporting of events and temperature
• Firmware update via Lenovo firmware update tools
• Supports SED drive encryption

ThinkSystem M.2 SATA/x4 NVMe 2-Bay Adapter (4Y37A79663) optionally supports RAID with the addition of a separate RAID adapter. For CTO orders, ordering information is listed in the following table.

M.2 field upgrades

The SE455 V3 supports the adding either M.2 adapter as a field upgrade.

The following table lists the part numbers needed to add the ThinkSystem M.2 SATA/x4 NVMe 2-Bay Adapter (4Y37A79663) as a field upgrade. Note that 4XF7A89291 does not include the M.2 adapter; you will need to order 4Y37A79663 as well.

The following table lists the part numbers needed to add the ThinkSystem M.2 RAID B540i-2i SATA/NVMe Adapter (4Y37A90063) as a field upgrade. A separate RAID adapter is not required nor supported.

For further details about M.2 components, see the ThinkSystem M.2 Drives and M.2 Adapters product guide:
https://lenovopress.com/lp0769-thinksystem-m2-drives-adapters

RAID flash power module (supercap) support

If you plan to add a RAID 940 adapters as a field upgrade, then you will also need to order a separate cable kit. This kit provides a cable of suitable length to connect the RAID adapter's flash power module (supercap) to the RAID adapter.

For CTO orders, the components in the installation kit are automatically derived when you select the RAID adapter.

The supercap is installed in a dedicated location adjacent to the M.2 adapter as shown in the internal view of the server.

Ordering information for the cable kit is listed in the following table. The supercap itself is included with the adapter and does not need to be ordered separately.

The drives of the SE455 V3 are connected to controller on the system board:

• Onboard SATA ports (no RAID support)
• Onboard NVMe ports (no RAID support)

The following table lists the controllers that can also be used for the internal storage of the server.

Configuration rules:

• Only one SATA controller (onboard or RAID adapter or HBA) can be selected. It it not supported to have one controller for the internal drives and a separate controller for the hot-swap drives.

The following tables list the drive options for internal storage of the server.

The SE455 V3 does not support an optical drive.

The SE455 V3 has up to six full-height (FH) PCIe slots for adapters, plus an OCP 3.0 slot. Slots are half-length (FHHL) by default, unless a full-length (FHFL) adapter is selected in the configurator.

• Riser 1:
  • Slot 3: PCIe Gen5 x16
  • Slot 4: PCIe Gen4 x8
  • Slot 5: PCIe Gen4 x8
• Riser 2 (optional)
  • Slot 6: PCIe Gen4 x8 (not connected in some configurations)
  • Slot 7: PCIe Gen5 x16
  • Slot 8: PCIe Gen4 x8 (not connected in some configurations)
• OCP slot 9: PCIe G5 x16

Specific support for these slots is listed in the Configurations section.

Figure 9. Slot numbering

Ordering information for the Risers are listed in the following table. Riser 1 is standard in all configuration, but Riser 2 is optional and can also be added as a field upgrade.

Configurations notes:

• Risers are configured in the factory to support either full-length (FL) adapters or half-length (HL) adapters, based on the adapters selected. Air baffles and cages are derived by the configurator based on whether the adapters are FL or HL to ensure proper airflow and adapter support. For CTO factory orders:
  • Risers with only HL adapters or without any adapters installed will be configured to only support HL adapters
  • Risers with a FL adapter installed will be configured to support FL adapters or a mix of FL and HL adapters
• The use of full-length (FL) adapters requires full-length slots and the processor must have a 1U heatsink; a 2U heatsink is not supported as the FL adapter and 2U heatsink occupy the same physical space.
• If a riser is configured to support FL adapters then it is the upper two slots that support FL adapters (slots 3 & 4 in Riser 1, slots 6 & 7 in Riser 2). The lower slot in each riser (slot 5 and slot 9) will be a HL slot due to physical interference of the 1U heatsink and other components.

Slot field upgrades

The risers in the SE455 V3 are configured in one of two ways, depending on the factory configuration:

• Support for half-length adapters only (includes low profile): All three slots in the riser will only support half-length adapters. This is the default configuration, and is used if no adapters are configured or if only half-length adapters are configured.
• Support for full-length adapters: The top two slots will support full-length (FHFL) adapters; the bottom slot will only support half-length adapters. Risers will only be configured this way if an adapter in the factory order is a full-length adapter (eg double-wide GPU).

If you wish to convert a server from full-length to half-length or from half-length to full-length, then you will need to order the kit listed in the following table.

Upgrade notes:

• The server only supports FL adapters provided the CPU has a 1U heatsink attached. If a 2U heatsink is used, then the server cannot support an upgrade to FL adapters.
• If Riser 2 is not present, and you wish to add Riser 2 with FL adapter support (eg to add support for a second DW GPU), you will only need to order ThinkEdge SE455 V3 Riser2 Kit, 4XF7A89287. The ThinkEdge SE455 V3 Full Length Adapter Enablement Kit (4XF7A89286) is not required as 4XF7A89287 includes the needed components for FL adapters. For GPUs, you may also need to order a GPU auxiliary power cable as described in the GPU adapters section.

If you remove a PCIe adapter or an OCP adapter, you should replace them with a slot filler to ensure the correct airflow is maintained. Ordering details are listed in the following table.

The SE455 V3 has a dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface. One port can optionally be shared with the XCC management processor for Wake-on-LAN and NC-SI support.

The following table lists the supported OCP adapters.

The following table lists additional supported network adapters that can be installed in the PCIe slots.

Configuration rules:

• For CTO orders, the quantity of Ethernet and InfiniBand cables is limited as follows, due to space limitations in the server packaging. Additional cables can be ordered separately using part numbers.
  • With the security bezel included in the order, at most 2x cables (power cords or network cables) can be included in the CTO order
  • If the security bezel is not included in the order, at most 4x cables (power cords or network cables) can be included in the CTO order
  • No cables 10m or longer can be included in the CTO order and will need to be ordered separately as part numbers.

For more information, including the transceivers and cables that each adapter supports, see the list of Lenovo Press Product Guides in the Networking adapters category:
https://lenovopress.com/servers/options/ethernet

The SE455 V3 supports the accelerators listed in the following table.

The following table lists the supported GPUs.

Configuration notes:

• Some NVIDIA A Series GPUs are available as two feature codes, one with a CEC chip and one without a CEC chip (ones without the CEC chip have "w/o CEC" in the name). The CEC is a secondary Hardware Root of Trust (RoT) module that provides an additional layer of security, which can be used by customers who have high regulatory requirements or high security standards. NVIDIA uses a multi-layered security model and hence the protection offered by the primary Root of Trust embedded in the GPU is expected to be sufficient for most customers. The CEC defeatured products still offer Secure Boot, Secure Firmware Update, Firmware Rollback Protection, and In-Band Firmware Update Disable. Specifically, without the CEC chip, the GPU does not support Key Revocation or Firmware Attestation. CEC and non-CEC GPUs of the same type of GPU can be mixed in field upgrades.

• Installed GPUs must be identical
• The use of the NVIDIA L40 GPU may require 1800W power supplies, depending on the configuration
• The use of the NVIDIA L40 GPU requires:
  • 1U heatsink
  • Processor with TDP ≤ 130W
  • Ambient temperature ≤ 40°C - see Operating environment section
  • No acoustic mode selected in the configurator - see Acoustic modes section

You will need these two options if you are adding 1x or 2x L40 GPUs, including if you are adding a second L40 GPU to a server that already has one L40 installed in the factory.

If you have Riser 2 installed and only plan to install 1x L40 GPU, install it in Riser 2 (slot 7) to optimize thermal and acoustic performance.

For two GPUs, you will also need to order the Riser 2 kit, if the server doesn't already have Riser 2 installed. See the I/O expansion section.

For information about the GPU, see the ThinkSystem GPU Summary, available at:
https://lenovopress.com/lp0768-thinksystem-thinkagile-gpu-summary

The SE455 V3 server has five 60 mm dual-rotor simple-swap fans.

All five are standard and support N+1 rotor redundancy. If customers choose to have spare fans available for immediate use should one fail, they can be ordered using the part number in the following table.

The SE455 V3 supports one or two hot-swap power supplies, installed at the front of the server. When two are installed, they form a redundant pair. Ordering information is listed in the following table.

Zero-output mode: When Zero-output mode (also known as Standby mode or Cold Redundancy mode) is configured in XCC and the server power load is sufficiently low, one of the installed power supplies enters into the Standby state while the other one delivers entire load. When the power load increases, the standby power supply will switch to Active state to provide sufficient power to the server. Zero-output mode can be enabled or disabled in the XClarity Controller web interface, Server Configuration > Power Policy. If you select Disable, then both power supplies will be in the Active state.

-48V DC power cord

For the -48V DC Power Supply, the following power cable is supported.

The SE455 V3 contains an integrated service processor, XClarity Controller 2 (XCC2), which provides advanced control, monitoring, and alerting functions. The XCC2 is based on the ASPEED AST2600 baseboard management controller (BMC).

Topics in this section:

• Local management
• External Diagnostics Handset
• System status with XClarity Mobile
• Remote management
• MicroSD slot for XCC2 storage
• XCC2 Platinum
• Lenovo XClarity Provisioning Manager
• Lenovo XClarity Administrator
• Lenovo XClarity Integrators
• Lenovo XClarity Essentials
• Lenovo XClarity Energy Manager
• Lenovo Capacity Planner

The buttons on the front of the server:

• Power button
• ID (identification) button - turns on the LED housed within the button as well as passing the signal to the XCC for display remotely in XClarity Administrator
• NMI reset (pin hole) - force a nonmaskable interrupt (NMI) to the processor

The LEDs on the front of the server are as follows:

• Security LED (green) - indicates the state of server security:
  • Solid on - The server is operating with security feature enabled
  • Blinking - The server is in System Lockdown Mode. The server must be activated or unlocked to operate
  • Off - No security feature is enabled on the server
• Power LED (green) - indicates power status, as follows:
  • Off - Server does not have power applied
  • Fast flash (4 times per second) - The server has just had power applied and is not ready to be powered on yet
  • Slow flash (once per second) - Server is ready to be powered on
  • On solid - Server is powered on
• Ethernet network activity - indicates when the Ethernet adapter installed in the OCP slot has activity
• Identification LED (blue) - lights when the button is pressed or when the function is activated remotely in XClarity Controller.
• System error LED (yellow)

The power, network, ID and error LEDs are duplicated on the front of the security bezel as shown in the Security section.

The SE455 V3 provides a USB-C port for connecting to a a local video display. For VGA connections, a USB-C-to-VGA conversion cable is included with the server. Additional VGA cables can be ordered as listed in the following table.

External Diagnostics Handset

The SE455 V3 also has a port to connect an External Diagnostics Handset as shown in the following figure. The External Diagnostics Handset has the same functions as the Integrated Diagnostics Panel but has the advantages of not consuming space on the front of the server plus it can be shared amongst many servers in your data center. The handset has a magnet on the back of it to allow you to easily mount it on a convenient place on any rack cabinet.

Figure 12. External Diagnostics Handset

Ordering information for the External Diagnostics Handset with is listed in the following table.

The steps to connect the mobile device are as follows:

1. Enable USB Management on the server, by holding down the ID button for 3 seconds (or pressing the dedicated USB management button if one is present)
2. Connect the mobile device via a USB cable to the server's USB port with the management symbol
3. In iOS or Android settings, enable Personal Hotspot or USB Tethering
4. Launch the Lenovo XClarity Mobile app

Remote management

Remote server management is provided through industry-standard interfaces:

• Intelligent Platform Management Interface (IPMI) Version 2.0
• Simple Network Management Protocol (SNMP) Version 3 (no SET commands; no SNMP v1)
• Common Information Model (CIM-XML)
• Representational State Transfer (REST) support
• Redfish support (DMTF compliant)
• Web browser - HTML 5-based browser interface (Java and ActiveX not required) using a responsive design (content optimized for device being used - laptop, tablet, phone) with NLS support

Remote management is available via the following connections:

• Via the dedicated Ethernet port for management. See the Components and connectors section for the location of these ports.
• Via Port 1 of the OCP adapter (if installed), which supports NC-SI to allow sharing of the Ethernet port between the operating system and remote management.

The front of the server houses an pull-out information tab (also known as the network access tag). A label on the tab shows the network information (MAC address and other data) to remotely access the service processor. See the Components and connectors section for the location of this pull-out tab.

The MicroSD card slot is located at the front of the server adjacent to the OCP slot, as shown in the Internal view of the server.

Ordering information for the supported USB drive and Micro SD card are listed in the following table.

XCC2 Platinum adds the following Enterprise and Advanced functions:

• Remotely viewing video with graphics resolutions up to 1600x1200 at 75 Hz with up to 23 bits per pixel, regardless of the system state
• Remotely accessing the server using the keyboard and mouse from a remote client
• International keyboard mapping support
• Syslog alerting
• Redirecting serial console via SSH
• Component replacement log (Maintenance History log)
• Access restriction (IP address blocking)
• Lenovo SED security key management
• Displaying graphics for real-time and historical power usage data and temperature
• Boot video capture and crash video capture
• Virtual console collaboration - Ability for up to 6 remote users to be log into the remote session simultaneously
• Remote console Java client
• Mapping the ISO and image files located on the local client as virtual drives for use by the server
• Mounting the remote ISO and image files via HTTPS, SFTP, CIFS, and NFS
• System utilization data and graphic view
• Single sign on with Lenovo XClarity Administrator
• Update firmware from a repository
• License for XClarity Energy Manager

Note: The SE455 V3 does not support Power capping.

With XCC2 Platinum, for CTO orders, you can request that System Guard be enabled in the factory and the first configuration snapshot be recorded. To add this to an order, select feature code listed in the following table. The selection is made in the Security tab of the DCSC configurator.

For more information about System Guard, see https://pubs.lenovo.com/xcc2/NN1ia_c_systemguard

Because Lenovo XClarity Administrator does not require any agent software to be installed on the managed endpoints, there are no CPU cycles spent on agent execution, and no memory is used, which means that up to 1GB of RAM and 1 - 2% CPU usage is saved, compared to a typical managed system where an agent is required.

Lenovo XClarity Administrator is an optional software component for the SE455 V3. The software can be downloaded and used at no charge to discover and monitor the SE455 V3 and to manage firmware upgrades.

If software support is required for Lenovo XClarity Administrator, or premium features such as configuration management and operating system deployment are required, Lenovo XClarity Pro software subscription should be ordered. Lenovo XClarity Pro is licensed on a per managed system basis, that is, each managed Lenovo system requires a license.

The following table lists the Lenovo XClarity software license options.

For more information, refer to the Lenovo XClarity Administrator Product Guide:
http://lenovopress.com/tips1200

For more information about all the available Lenovo XClarity Integrators, see the Lenovo XClarity Administrator Product Guide: https://lenovopress.com/tips1200-lenovo-xclarity-administrator

LXEM is a licensed product. A single-node LXEM license is included with the XClarity Controller Platinum upgrade as described in the XCC2 Platinum section. If your server does not have the XCC Platinum upgrade, Energy Manager licenses can be ordered as shown in the following table.

Topics in this section:

• Security features
• Intrusion switch
• Firmware and Root of Trust Security Module
• Security bezel
• Platform Firmware Resiliency - Lenovo ThinkShield
• System Lockdown Mode
• SED encryption in factory orders
• AMD Infinity Guard

Security features

The SE455 V3 offers a number of security features, both electronic and physical.

Physical security features:

• Lockable top cover
• Front security bezel with key lock (optional, available as a field upgrade). See Security bezel.
• Intrusion detection. See Intrusion switch.
• EIA mounting flange with security key (optional, available as a field upgrade). Available EIA bracket that uses a security screw to attach the server to the front flange of the rack cabinet. See EIA bracket with security screw for more information.

Electronic security features include:

• Tamper Detection with System Lockdown. In the event of an intrusion or movement, the server can be configured in XCC to perform actions, including server shutdown, data SED lockdown, and disabling remote access to the XCC from the network ports (referred to as the BMC network bridge).
• Management of these lockdown features can be either centralized via the ThinkShield Key Vault Portal, or performed locally in the XCC management controller. See the System Lockdown Mode Control system for details.
• Self-encrypting (SED) drives that ensure data is secured when the drives are powered off
• Administrator password and a power-on password in UEFI
• Root of Trust (RoT) module providing Platform Firmware Resiliency (PFR) and Trusted Platform Module (TPM 2.0) functionality. See Firmware and Root of Trust Security Module.
• AMD Infinity Guard, as described in the AMD Infinity Guard section

For more information, see ThinkEdge Security, available from:
https://lenovopress.lenovo.com/lp1725-thinkedge-security

The server is NIST SP 800-147B compliant.

The following figure shows the location of the exterior security features.

Figure 13. SE455 V3 Security bezel

The intrusion switch is included in all orders.

Ordering information is listed in the following table.

The following figure shows the SE455 V3 with security bezel installed.

Figure 14. SE455 V3 with security bezel installed

The security bezel kit includes the following components:

• Security bezel
• Dust filter
• Air flow sensor
• Bezel detect switch
• Bezel keylock bracket

Installation instructions can be found in the SE455 V3 User Guide:
https://pubs.lenovo.com/se455-v3/install_security_bezel

The Air Flow Sensor can detect when the filter is clogged. Operation is described in the Dust filter section

Ordering information for the bezel and additional dust filters is listed in the following table.

The security bezel also includes the following system LEDs:

• Power
• Ethernet network activity (OCP adapter)
• ID (identification)
• System error

See the Local management section for information about these LEDs.

Platform Firmware Resiliency - Lenovo ThinkShield

Lenovo's ThinkShield Security is a transparent and comprehensive approach to security that extends to all dimensions of our data center products: from development, to supply chain, and through the entire product lifecycle.

The ThinkEdge SE455 V3 includes Platform Firmware Resiliency (PFR) hardware Root of Trust (RoT) which enables the system to be NIST SP800-193 compliant. This offering further enhances key platform subsystem protections against unauthorized firmware updates and corruption, to restore firmware to an integral state, and to closely monitor firmware for possible compromise from cyber-attacks.

PFR operates upon the following server components:

• UEFI image – the low-level server firmware that connects the operating system to the server hardware
• XCC image – the management “engine” software that controls and reports on the server status separate from the server operating system
• FPGA image – the code that runs the server’s lowest level hardware controller on the motherboard

The Lenovo Platform Root of Trust Hardware performs the following three main functions:

• Detection – Measures the firmware and updates for authenticity
• Recovery – Recovers a corrupted image to a known-safe image
• Protection – Monitors the system to ensure the known-good firmware is not maliciously written

These enhanced protection capabilities are implemented using a dedicated, discrete security processor whose implementation has been rigorously validated by leading third-party security firms. Security evaluation results and design details are available for customer review – providing unprecedented transparency and assurance.

The SE455 V3 includes support for Secure Boot, a UEFI firmware security feature developed by the UEFI Consortium that ensures only immutable and signed software are loaded during the boot time. The use of Secure Boot helps prevent malicious code from being loaded and helps prevent attacks, such as the installation of rootkits. Lenovo offers the capability to enable secure boot in the factory, to ensure end-to-end protection. Alternatively, Secure Boot can be left disabled in the factory, allowing the customer to enable it themselves at a later point, if desired.

The following table lists the relevant feature code(s).

System Lockdown Mode

System Lockdown Mode is an optional security feature of the SE455 V3 that ensures that the system is only used by its intended recipient and that all data and applications remains secure.

System Lockdown Mode is an optional feature that can be remotely managed in two ways:

• ThinkShield Key Vault Portal Managed. This provides a centralised remote management approach, allowing the administrator to remotely managed multiple systems and to register ownership of systems to their company, which reduces the system’s value if stolen.
• XClarity Controller Managed. This provides remote management level control to an individual system using XCC web interface, OneCLI or Redfish.

To select ThinkShield Key Vault Portal Managed in factory orders, select feature BYBR, as listed in the following table. The default in DCSC is to select XClarity Controller Managed, feature BYBQ.

If System Lockdown is enabled in the factory, the system will be delivered in system lockdown mode and will require activation before operation. There are three ways the server can be activated:

• Using a mobile device (iOS or Android) connect to the server to the USB management port on the front of the server and running the ThinkShield Edge Mobile Management app.
• Connecting the system to the Internet via the XCC management port on the front of the server and accessing the ThinkShield Key Vault Portal from a web browser on another system.
• In a disconnected mode, where neither a mobile device or an internet connection to the SE455 V3 are available.

For more information, see ThinkEdge Security, available from:
https://lenovopress.lenovo.com/lp1725-thinkedge-security

The SE455 V3 offers a Security LED that indicates the status of the server:

• LED on: Security is enabled; System is operational.
• LED blinking: Security is enabled and the server is in lockdown, either due to being delivered from the factory in lockdown mode or has entered lockdown as a result of a tamper event. System must be activated or reactivated before becoming operational.
• LED off: Security is disabled; System is operational.

SED encryption in factory orders

The SE455 V3 also optionally supports enabling SED drive encryption in the factory using feature BYBS as listed in the following table. This feature enables SED on the selected drives and sets and SED Authentication Key (SED AK).

If SED drive encryption is disabled in factory, it is possible to enable it later in XClarity Controller. Note that it is not possible to disable drive encryption once it has been enabled.

AMD Infinity Guard

The SE455 V3 implements the following security features enabled in the AMD EPYC processor:

• Secure Memory Encryption

  Helps protect against attacks on the integrity of main memory (such as cold-boot attacks) because it encrypts the data. High-performance encryption engines integrated into the memory channels help speed performance. All of this is accomplished without modifications to your application software.

• Secure Encrypted Virtualization

  Helps safeguard privacy and integrity by encrypting each virtual machine with one of up to 509 unique encryption keys known only to the processor. This aids in protecting confidentiality of your data even if a malicious virtual machine finds a way into your virtual machine’s memory, or a compromised hypervisor reaches into a guest virtual machine.

• Secure Nested Paging

  Adds strong memory integrity protection capabilities to help prevent malicious hypervisor based attacks like data replay, memory re-mapping, and more in order to create an isolated execution environment.

• Secure Boot

  Mitigates against firmware-level attacks, Extends the AMD silicon root of trust to help protect the system BIOS. This helps the system establish an unbroken chain of trust from the AMD silicon root of trust to the BIOS using AMD Secure Boot, and then from the system BIOS to the OS Bootloader using UEFI secure boot.

• Shadow Stack

  Provides hardware-enforced stack protection capabilities address threat vectors such as return oriented programming attacks by keeping a record of the return addresses so a comparison can be made to ensure integrity is not compromised. In addition, AMD Shadow Stack enables Microsoft® hardware enforced stack protection.

For more information, see the AMD Infinity Guard web page:
https://www.amd.com/en/technologies/infinity-guard

The SE455 V3 server can be installed in a rack cabinet, either 2-post, 4-post long, or 4-post short.

In this section:

• Rail kits
• EIA bracket with security screw
• EIA bracket adjustment

Rail kits

The following table lists the available rail kits. Each kit includes the left and right rails plus mounting hardware.

The following table summarizes the specifications of the available rail kits.

EIA bracket with security screw

The SE455 V3 offers two types of EIA brackets (also known as ear brackets or ears):

• Standard EIA bracket - uses thumbscrews to secure the server to the front flange of the cabinet
• Security EIA bracket - uses security screws and key to secure the server to the front flange of the cabinet

The use of the security bracket and key (the key is included with the brackets) aids in preventing unauthorized personnel from removing the server from the rack.

The following figure shows the two EIA bracket types.

Figure 15. EIA brackets for the SE455 V3

Ordering information is listed in the following table.

EIA bracket adjustment

When installed in a rack cabinet, the EIA brackets on either side of the  SE455 V3 chassis can be adjusted to best fit the front cabling and clearance needs of your environment. The EIA brackets can be in one of six different positions as shown in the following figure.

Position 1 locates the server as far back into the rack cabinet as possible, such that the front of the security bezel is flush with the front flange of the cabinet. The distance between positions 1, 2, 3, 4, 5, and 6 is 12.5 mm. Position "Max" positions the server as far forward as possible, and is an additional 37.5 mm from position 6, for a total of 112.5 mm difference between positions 1 and Max.

Figure 16. Adjusting the locations of the EIA brackets on the sides of the server

The SE455 V3 supports the following operating systems:

• Microsoft Windows Server 2019
• Microsoft Windows Server 2022
• Microsoft Windows Server 2025
• Red Hat Enterprise Linux 8.6
• Red Hat Enterprise Linux 8.8
• Red Hat Enterprise Linux 8.9
• Red Hat Enterprise Linux 8.10
• Red Hat Enterprise Linux 9.0
• Red Hat Enterprise Linux 9.2
• Red Hat Enterprise Linux 9.3
• Red Hat Enterprise Linux 9.4
• SUSE Linux Enterprise Server 15 SP4
• SUSE Linux Enterprise Server 15 SP5
• SUSE Linux Enterprise Server 15 SP6
• SUSE Linux Enterprise Server 15 Xen SP4
• SUSE Linux Enterprise Server 15 Xen SP5
• Ubuntu 20.04 LTS 64-bit
• Ubuntu 22.04 LTS 64-bit
• Ubuntu 24.04 LTS 64-bit
• VMware ESXi 7.0 U3
• VMware ESXi 8.0 U1
• VMware ESXi 8.0 U2
• VMware ESXi 8.0 U3

For a complete list of supported, certified and tested operating systems, plus additional details and links to relevant web sites, see the Operating System Interoperability Guide: https://lenovopress.com/osig#servers=se455-v3-7dby

For configure-to-order configurations, the SE455 V3 can be preloaded with VMware ESXi. Ordering information is listed in the following table.

Configuration rule:

• An ESXi preload cannot be selected if the configuration includes an NVIDIA GPU (ESXi preload cannot include the NVIDIA driver)

You can download supported VMware vSphere hypervisor images from the following web page and install it using the instructions provided:
https://vmware.lenovo.com/content/custom_iso/

Lenovo ThinkEdge systems can be used in hyperconverged solutions either as part of a Lenovo configured and optimized Lenovo ThinkAgile solution, or as a user-configured system.

Refer to the following links for full details.

VMware vSAN

SE455 V3 supports vSAN ESA. For more information refer to this page:
vSAN Express Storage Architecture (ESA) ReadyNode Configurator

Microsoft Azure Stack HCI

SE455 V3 is the base hardware for the ThinkAgile MX455 V3 Edge Premier System. For more information refer to the product guide:
https://lenovopress.lenovo.com/lp1889-thinkagile-mx455-v3-edge-premier-solution

The SE455 V3 has the following overall physical dimensions, excluding components that extend outside the standard chassis, such as EIA flanges, front security bezel (if any), and power supply handles:

• Width: 445 mm (17.5 inches)
• Height: 87 mm (3.4 inches)
• Depth: 452 mm (17.8 inches)

The following table lists the detailed dimensions. See the figure below for the definition of each dimension.

Figure 17. Server dimensions

Grounding cable

The SE455 V3 includes two grounding points on the front of the server to enable the connection of a grounding cable. The table below lists the ordering information for the supported cable.

The following figure shows the cable.

Figure 18. Grounding cable

The SE455 V3 server complies with ASHRAE Class A2 specifications with most configurations, and depending on the hardware configuration, also complies with ASHRAE Class A3 or A4 specifications.

Topics in this section:

• Temperature and humidity
• Configuration requirements
• Acoustic modes
• Acoustical noise emissions
• Shock and vibration
• NEBS support
• Particulate contamination
• Dust filter
• Replacement port dust covers
• Coin battery

ThinkEdge SE455 V3 complies with ASHRAE Class A2 specifications with most configurations, and depending on the hardware configuration, also complies with ASHRAE Class A3, and Class A4 specifications. System performance may be impacted when operating temperature is outside AHSARE A2 specification.

Air temperature:

• Operating
  • ASHARE Class A2: 10°C to 35°C (50°F to 95°F); the maximum ambient temperature decreases by 1°C for every 300 m (984 ft) increase in altitude above 900 m (2,953 ft).
  • ASHARE Class A3: 5°C to 40°C (41°F to 104°F); the maximum ambient temperature decreases by 1°C for every 175m (574 ft) increase in altitude above 900 m (2,953 ft).
  • ASHARE Class A4: 5°C to 45°C (41°F to 113°F); the maximum ambient temperature decreases by 1°C for every 125m (410 ft) increase in altitude above 900 m (2,953 ft).
• Server off: 5°C to 45°C (41°F to 113°F)
• Shipment/storage: -40°C to 60°C (-40°F to 140°F)
• Extended operation temperature (with limited configuration):
  • Server on: 5°C to 55°C (41°F to 131°F)
  • Server off: 5°C to 55°C (41°F to 131°F)
• Maximum rate of change(°C/hr) should be ≤ 20.

Maximum altitude: 3,050 m (10,000 ft) at operating temperature 5°C to 45°C

Relative Humidity (non-condensing):

• Operating temperature 5°C to 45°C: 8% to 90%
  • ASHRAE Class A2: 8% to 80%; maximum dew point: 21°C (70°F)
  • ASHRAE Class A3: 8% to 85%; maximum dew point: 24°C (75°F)
  • ASHRAE Class A4: 8% to 90%; maximum dew point: 24°C (75°F)
• Extended operation temperature (with limited configuration) 50 °C to 55 °C: 5% to 90%; maximum dew point: 24°C (75°F)
• Shipment/storage: 8% to 90%
• Humidity transition rate should be ≤10%/hr.

Configuration requirements

The following table lists the components that are supported based on the ambient temperature.

Acoustic modes

The SE455 V3 supports different acoustic modes, which optimize the operation of system fans to lower the overall noise level of the server. This is achieved by closely monitoring components to ensure they operate within the cooling available.

You can specify which acoustic mode you want enabled in the factory by specifying one of the feature codes listed in the following table in the DCSC configurator. By selecting the mode, the configurator will limit the configuration options to ensure the noise requirements are met. You can also specify or change the acoustic mode in UEFI. During server operation, power capping may be enabled, if needed, to ensure that noise limits are met.

The acoustic modes are designed to run with an ambient temperature of no more than 35°C. Above 35°C, the acoustic mode will be exited to prevent the system from overheating. Once the ambient temperature returns to below 35°C, the acoustic mode will be re-enabled automatically.

The following table lists the components that are recommended in the acoustic modes.

* If a component is listed as “not recommended” then that means that the component usually generates too much heat for the fans to run at a low enough speed to keep the noise of the system low. If the component is installed and is only lightly loaded, it may still be possible to run the server in the Acoustic Mode

Acoustical noise emissions

The server has the following acoustic noise emissions declaration:

• Sound power level (L_WAd)
  • Idling:
    • Minimum: 5.5 Bel
    • GPU Rich: 5.5 Bel
    • Storage Rich: 5.8 Bel
  • Operating profile 1:
    • Minimum: 5.5 Bel
    • GPU Rich: 5.5 Bel
    • Storage Rich: 5.8 Bel
  • Operating profile 2:
    • Minimum: 5.5 Bel
    • GPU Rich: 7.4 Bel
    • Storage Rich: 6.0 Bel
• Sound pressure level (L_pAm):
  • Idling:
    • Minimum: 39.0 dBA
    • GPU Rich: 39.0 dBA
    • Storage Rich: 42.8 dBA
  • Operating profile 1:
    • Minimum: 39.0 dBA
    • GPU Rich: 39.0 dBA
    • Storage Rich: 42.8 dBA
  • Operating profile 2:
    • Minimum: 39.0 dBA
    • GPU Rich: 58.2 dBA
    • Storage Rich: 44.6 dBA

Notes:

• These sound levels were measured in controlled acoustical environments according to procedures specified by ISO7779 and are reported in accordance with ISO 9296. Operating profile 1 is represented by 50% CPU TDP. Operating profile 2 is represented by 100% CPU TDP or 70%/30% storage write/read or 100% GPU. Testing was conducted at 23°C ± 2°C to align with ISO7779.
• The declared acoustic sound levels are based on the specified configurations, which may change depending on configuration/conditions.
  • Minimum: 1x AMD EPYC 8024P (8 core, 90W) CPU, 1x 2U heat sink, 4x ThinkSystem 32GB TruDDR5 4800MHz (2Rx8) RDIMMs, 1x ThinkSystem Intel X710-T2L 10GBASE-T 2-port OCP Ethernet Adapter, 2x 5400 Pro 2280 M.2 SATA SSD 960GB boot drive with 1x ThinkSystem RAID 5350-8i PCIe 12Gb Adapter for M.2 RAID, 4x ThinkSystem 2.5" 5400 MAX 3.84TB Mixed Use SATA 6Gb HS SSD data drives with 1x ThinkSystem RAID 5350-8i PCIe 12Gb Adapter for SATA RAID, 2x AC PSU 1100W
  • GPU Rich: 1x AMD EPYC 8224P (24 core, 160W) CPU, 1x 2U heat sink, 4x ThinkSystem 32GB TruDDR5 4800MHz (2Rx8) RDIMMs, 1x ThinkSystem Intel X710-T2L 10GBASE-T 2-port OCP Ethernet Adapter, 2x 5400 Pro 2280 M.2 SATA SSD 960GB boot drive with 1x ThinkSystem RAID 5350-8i PCIe 12Gb Adapter for M.2 RAID, 4x ThinkSystem 2.5" 5400 MAX 3.84TB Mixed Use SATA 6Gb HS SSD data drives with 1x ThinkSystem RAID 5350-8i PCIe 12Gb Adapter for SATA RAID, 4x ThinkSystem NVIDIA L4 24GB PCIe Gen4 Passive GPU, 2x AC PSU 1100W
  • Storage Rich: 1x AMD EPYC 8124P (16 core, 125W) CPU, 1x 2U heat sink, 4x ThinkSystem 32GB TruDDR5 4800MHz (2Rx8) RDIMMs, 1x ThinkSystem Intel X710-T2L 10GBASE-T 2-Port PCIe Ethernet Adapter, 2x 5400 Pro 2280 M.2 SATA SSD 960GB boot drive with M.2 RAID B540i-2i adapter for M.2 RAID, 8x ThinkSystem 2.5" 5400 PRO 7.68TB Read Intensive SATA 6Gb HS SSD, 2x AC PSU 1100W
• Government regulations (such as those prescribed by OSHA or European Community Directives) may govern noise level exposure in the workplace and may apply to you and your server installation. The actual sound pressure levels in your installation depend upon a variety of factors, including the number of racks in the installation; the size, materials, and configuration of the room; the noise levels from other equipment; the room ambient temperature, and employee's location in relation to the equipment. Further, compliance with such government regulations depends on a variety of additional factors, including the duration of employees' exposure and whether employees wear hearing protection. Lenovo recommends that you consult with qualified experts in this field to determine whether you are in compliance with the applicable regulations.

The following specifications indicate the limits of particulates that the system can tolerate:

• Reactive gases:
  • The copper reactivity level shall be less than 200 Angstroms per month (Å/month)
  • The silver reactivity level shall be less than 200 Å/month
• Airborne particulates:
  • The deliquescent relative humidity of the particulate contamination should be more than 60% RH
  • Environment must be free of zinc whiskers

For additional information, see the Specifications section of the documentation for the server, available from the Lenovo Documents site, https://pubs.lenovo.com/

A single dust filter is included with the security bezel as described in the Security bezel section.

Ordering information for additional dust filters is listed in the following table.

The dust filter is installed inside the security bezel as shown in the following figure.

Figure 19. Dust filter in the security bezel

XClarity Controller can be configured to perform a monthly automated check of the dust filter to ensure sufficient airflow, as shown in the following figure. You can also perform an immediate test if desired. If air flow is reduced below a predefined threshold, an XCC hardware event will be triggered. Note that during the test, the system fans are ramped up to full speed for up to 30 seconds. Server performance is not affected during this test.

For more information, see online documentation at:
https://pubs.lenovo.com/se455-v3/dust_filter_measurement

Figure 20. Dust filter measurement in XCC

Replacement port dust covers

By default, the server includes dust covers for all front I/O ports, to reduce the impact of dust in your environment. If needed, you can order replacement covers. Ordering information is listed in the following table.

Coin battery

Ordering information for coin battery field upgrades are listed in the following table.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers Services.

Lenovo Data Center Services empower you at every stage of your IT lifecycle. From expert advisory and strategic planning to seamless deployment and ongoing support, we ensure your infrastructure is built for success. Our comprehensive services accelerate time to value, minimize downtime, and free your IT staff to focus on driving innovation and business growth.

In this section:

• Lenovo Advisory Services
• Lenovo Plan & Design Services
• Lenovo Deployment, Migration, and Configuration Services
• Lenovo Support Services
• Lenovo Managed Services
• Lenovo Sustainability Services

Lenovo Deployment, Migration, and Configuration Services

Optimize your IT operations by shifting labor-intensive functions to Lenovo's skilled technicians for seamless on-site or remote deployment, configuration, and migration. Enjoy peace of mind, faster time to value, and comprehensive knowledge sharing with your IT staff, backed by our best-practice methodology.

• Deployment Services for Storage and ThinkAgile

  A comprehensive range of remote and onsite options tailored specifically for your business needs to ensure your storage and ThinkAgile hardware are fully operational from the start.

• Hardware Installation Services

  A full-range, comprehensive setup for your hardware, including unpacking, inspecting, and positioning components to ensure your equipment is operational and error-free for the most seamless and efficient installation experience, so you can quickly benefit from your investments.

• DM/DG File Migration Services

  Take the burden of file migration from your IT’s shoulders. Our experts will align your requirements and business objectives to the migration plans while coordinating with your team to plan and safely execute the data migration to your storage platforms.

• DM/DG/DE Health Check Services

  Our experts perform proactive checks of your Firmware and system health to ensure your machines are operating at peak and optimal efficiency to maximize up-time, avoid system failures, ensure the security of IT solutions and simplify maintenance.

• Factory Integrated Services

  A suite of value-added offerings provided during the manufacturing phase of a server or storage system that reduces time to value. These services aim at improving your hardware deployment experience and enhance the quality of a standard configuration before it arrives at your facility.

Lenovo Support Services

In addition to response time options for hardware parts, repairs, and labor, Lenovo offers a wide array of additional support services to ensure your business is positioned for success and longevity. Our goal is to reduce your capital outlays, mitigate your IT risks, and accelerate your time to productivity.

• Premier Support for Data Centers

  Your direct line to the solution that promises the best, most comprehensive level of support to help you fully unlock the potential of your data center.

• Premier Enhanced Storage Support (PESS)

  Gain all the benefits of Premier Support for Data Centers, adding dedicated storage specialists and resources to elevate your storage support experience to the next level.

• Committed Service Repair (CSR)

  Our commitment to ensuring the fastest, most seamless resolution times for mission-critical systems that require immediate attention to ensure minimal downtime and risk for your business. This service is only available for machines under the Premier 4-Hour Response SLA.

• Multivendor Support Services (MVS)

  Your single point of accountability for resolution support across vast range of leading Server, Storage, and Networking OEMs, allowing you to manage all your supported infrastructure devices seamlessly from a single source.

• Keep Your Drive (KYD)

  Protect sensitive data and maintain compliance with corporate retention and disposal policies to ensure your data is always under your control, regardless of the number of drives that are installed in your Lenovo server.

• Technical Account Manager (TAM)

  Your single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time, ensuring smooth operations and optimized performance as your business grows.

• Enterprise Software Support (ESS)

  Gain comprehensive, single-source, and global support for a wide range of server operating systems and Microsoft server applications.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers.

Lenovo Managed Services

Achieve peak efficiency, high security, and minimal disruption with Lenovo's always-on Managed Services. Our real-time monitoring, 24x7 incident response, and problem resolution ensure your infrastructure operates seamlessly. With quarterly health checks for ongoing optimization and innovation, Lenovo's remote active monitoring boosts end-user experience and productivity by keeping your data center's hardware performing at its best.

Lenovo Managed Services provides continuous 24x7 remote monitoring (plus 24x7 call center availability) and proactive management of your data center using state-of-the-art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals.

Quarterly reviews check error logs, verify firmware & OS device driver levels, and software as needed. We’ll also maintain records of latest patches, critical updates, and firmware levels, to ensure you systems are providing business value through optimized performance.

Lenovo Sustainability Services

• Asset Recovery Services

  Lenovo Asset Recovery Services (ARS) provides a secure, seamless solution for managing end-of-life IT assets, ensuring data is safely sanitized while contributing to a more circular IT lifecycle. By maximizing the reuse or responsible recycling of devices, ARS helps businesses meet sustainability goals while recovering potential value from their retired equipment. For more information, see the Asset Recovery Services offering page.

• CO2 Offset Services

  Lenovo’s CO2 Offset Services offer a simple and transparent way for businesses to take tangible action on their IT footprint. By integrating CO2 offsets directly into device purchases, customers can easily support verified climate projects and track their contributions, making meaningful progress toward their sustainability goals without added complexity.

• Lenovo Certified Refurbished

  Lenovo Certified Refurbished offers a cost-effective way to support IT circularity without compromising on quality and performance. Each device undergoes rigorous testing and certification, ensuring reliable performance and extending its lifecycle. With Lenovo’s trusted certification, you gain peace of mind while making a more sustainable IT choice.

Lenovo TruScale XaaS is your set of flexible IT services that makes everything easier. Streamline IT procurement, simplify infrastructure and device management, and pay only for what you use – so your business is free to grow and go anywhere.

Lenovo TruScale is  the unified solution that gives you simplified access to:

• The industry’s broadest portfolio – from pocket to cloud – all delivered as a service
• A single-contract framework for full visibility and accountability
• The global scale to rapidly and securely build teams from anywhere
• Flexible fixed and metered pay-as-you-go models with minimal upfront cost
• The growth-driving combination of hardware, software, infrastructure, and solutions – all from one single provider with one point of accountability.

For information about Lenovo TruScale offerings that are available in your region, contact your local Lenovo sales representative or business partner.

The SE455 V3 conforms to the following standards:

• ANSI/UL62368-1
• IEC 62368-1 (CB Certificate and CB Test Report)
• FCC - Verified to comply with Part 15 of the FCC Rules, Class A
• Canada ICES-003, issue 7, Class A
• CSA C22.2 No. 62368-1
• CISPR 32, Class A, CISPR 35
• Argentina IEC 62368-1: 2018
• Japan VCCI, Class A
• Taiwan BSMI CNS15936, Class A; CNS15598-1; Section 5 of CNS15663
• CE, UKCA Mark (EN55032 Class A, EN62368-1, EN55024, EN55035, EN61000-3-2, EN61000-3-3, (EU) 2019/424, and EN IEC 63000 (RoHS))
• Korea KN32, Class A, KN35
• Russia, Belorussia and Kazakhstan, TP EAC 037/2016 (for RoHS)
• Russia, Belorussia and Kazakhstan, EAC: TP TC 004/2011 (for Safety); TP TC 020/2011 (for EMC)
• EAC Russia, Belorussia and Kazakhstan, TR CU 020/2011 and TR CU 004/2011
• Australia/New Zealand AS/NZS CISPR 32, Class A; AS/NZS 62368.1
• UL Green Guard, UL2819
• Energy Star 4.0
• EPEAT (NSF/ ANSI 426) Bronze
• China CCC certificate, GB17625.1; GB4943.1; GB/T9254.1
• China CECP certificate, CQC3135
• China CELP certificate, HJ 2507-2011
• Japanese Energy-Saving Act
• Mexico NOM-019
• TUV-GS (EN62368-1, and EK1-ITB2000)
• India BIS 13252 (Part 1)
• Germany GS
• Brazil INMETRO
• South Africa NRCS LOA
• Ukraine UkrCEPRO
• Morocco CMIM Certification (CM)
• EU2019/424 Energy Related Product (ErP Lot9)
• NEBS 3

The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo.

For more information, see the list of Product Guides in the UPS category:
https://lenovopress.com/servers/options/ups

The following table lists the power distribution units (PDUs) that are offered by Lenovo.

For more information, see the Lenovo Press documents in the PDU category:
https://lenovopress.com/servers/options/pdu

The following table lists the supported Lenovo rack cabinets.

For information about these rack cabinets, see the Lenovo Rack Cabinet Reference:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference

For more information about rail kits, see the Rack installation section.

The following table lists the supported KVM consoles.

The following table lists the available KVM switches and the options that are supported with them.

For more information, see the list of Product Guides in the KVM Switches and Consoles category:
http://lenovopress.com/servers/options/kvm

Why wait to obtain the technology you need now? No payments for 90 days and predictable, low monthly payments make it easy to budget for your Lenovo solution.

• Flexible

  Our in-depth knowledge of the products, services and various market segments allows us to offer greater flexibility in structures, documentation and end of lease options.

• 100% Solution Financing

  Financing your entire solution including hardware, software, and services, ensures more predictability in your project planning with fixed, manageable payments and low monthly payments.

• Device as a Service (DaaS)

  Leverage latest technology to advance your business. Customized solutions aligned to your needs. Flexibility to add equipment to support growth. Protect your technology with Lenovo's Premier Support service.

• 24/7 Asset management

  Manage your financed solutions with electronic access to your lease documents, payment histories, invoices and asset information.

• Fair Market Value (FMV) and $1 Purchase Option Leases

  Maximize your purchasing power with our lowest cost option. An FMV lease offers lower monthly payments than loans or lease-to-own financing. Think of an FMV lease as a rental. You have the flexibility at the end of the lease term to return the equipment, continue leasing it, or purchase it for the fair market value. In a $1 Out Purchase Option lease, you own the equipment. It is a good option when you are confident you will use the equipment for an extended period beyond the finance term. Both lease types have merits depending on your needs. We can help you determine which option will best meet your technological and budgetary goals.

Ask your Lenovo Financial Services representative about this promotion and how to submit a credit application. For the majority of credit applicants, we have enough information to deliver an instant decision and send a notification within minutes.

The following sales training courses are offered for employees and partners (login required). Courses are listed in date order.

1. Think AI Weekly: Lenovo Solution for Smart Manufacturing at the Edge
   2024-11-04 | 60 minutes | Employees Only
   Details
   Think AI Weekly: Lenovo Solution for Smart Manufacturing at the Edge



   Join Dr. Marcelo Parada and Chris Laffey as they introduce the Lenovo Validated Design for Smart Manufacturing.
   • Components of the solution
   • Solving for the manufacturing process
   • Benefits for the customer

   Published: 2024-11-04
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DTAIW124
2. Partner Technical Webinar - SE350 Migration Strategy
   2024-11-04 | 60 minutes | Employees and Partners
   Details
   Partner Technical Webinar - SE350 Migration Strategy



   In this 60-minute webinar Chris Laffy, our Senior Product Line Manager, shares his extensive insights and ideas on migration strategies from the original SE350 to its successors.

   Published: 2024-11-04
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: 102524
3. VTT: Edge - Solution Design for Smart Manufacturing at the Edge October 2024
   2024-10-15 | 60 minutes | Employees Only
   Details
   VTT: Edge - Solution Design for Smart Manufacturing at the Edge October 2024



   Lenovo continues to innovate at the Edge! Join Dr. Marcelo Parada as he discusses the solution design for Smart Manufacturing developed by Lenovo Research and Development in Brazil. In this solution preview Marcelo will cover the AI/Edge architecture designs to enhance manufacturing processes and resolve challenges for tasks such as automated memory and CPU insertion, and automated quality inspection. Topics to include:
   - Components of the solution
   - Design considerations and schematics
   - Infrastructure Platform and Tools Overview
   - Benefits to the manufacturing process

   Published: 2024-10-15
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DVEDG216
4. VTT: Edge – The SE350 EOL is Coming, Prepare Yourself and Your Customer September 2024
   2024-09-10 | 60 minutes | Employees Only
   Details
   VTT: Edge – The SE350 EOL is Coming, Prepare Yourself and Your Customer September 2024



   As of March 2025, the Lenovo ThinkEdge SE350 will be EOL. Join Geoff Hunt and Chris Laffey as they discuss how to help your ThinkEdge SE350 customers transition to other offerings, with a special focus on ThinkEdge SE350 V2 and SE360 V2. Topics will include:
   • Positioning the SE350 V2 and SE360 V2 as alternates for the EOL SE350
   • A technical view of the generational differences

   Published: 2024-09-10
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DVEDG215
5. Think AI Weekly: Lenovo Validated Design for Public Safety and Security Edge AI
   2024-09-05 | 60 minutes | Employees Only
   Details
   Think AI Weekly: Lenovo Validated Design for Public Safety and Security Edge AI



   In this session a panel from the Lenovo ISG/IDG ThinkEdge Team discuss vertical solutions enabled by edge computing. Alejandro Perez, Trent Richardson, and Chris Arenas focus on the Lenovo Validated Design for Public Safety and Security while reviewing the process and importance of Lenovo Validated Designs for the Edge

   Published: 2024-09-05
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DTAIW117
6. VTT Edge: Lenovo Validated Design for Public Safety and Security Edge & AI July 2024
   2024-08-05 | 60 minutes | Employees Only
   Details
   VTT Edge: Lenovo Validated Design for Public Safety and Security Edge & AI July 2024



   The Lenovo ThinkEdge Team is collaborating with eco-system partners to design and validate Edge AI solutions across verticals. Join this session to learn about these efforts and the architecture of the first Lenovo Validated Design for Public Sector Safety and Security. The session will cover the following topics:
   • Overview of the Lenovo Validated Designs (LVD) for Vertical Edge
   • Public Sector Safety and Security LVD
   • Business Key drivers and solution benefits
   • Architecture and Technology Overview
   • Relevant use cases
   • Components and sizing details
   • Validation results and pricing model

   Published: 2024-08-05
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DVEDG214
7. Partner Technical Webinar - ThinkEdge Portfolio
   2024-08-02 | 60 minutes | Employees and Partners
   Details
   Partner Technical Webinar - ThinkEdge Portfolio



   July 26, 2024 - Lenovo SA's (Alex Docherty, Marcus White, and Eugene Grandberry) discuss strategy around the Thinkedge Portfolio.

   Published: 2024-08-02
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: 072624
8. VTT Edge: Lenovo Customer Solution for ENOC Filling Stations and Retail June 2024
   2024-06-10 | 45 minutes | Employees Only
   Details
   VTT Edge: Lenovo Customer Solution for ENOC Filling Stations and Retail June 2024



   Join Massimo (Max) Angelucci, Lenovo Solution Architect, and Abdlkareem (AK) Alhawajreh, Lenovo Client Account Manager, as they discuss the journey of the sale, the customer business, and their challenges. They cover the considerations and decision points when architecting the solution and why the customer chose Lenovo Edge.

   Published: 2024-06-10
   Length: 45 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DVEDG213
9. Lenovo Data Center Product Portfolio
   2024-05-29 | 20 minutes | Employees and Partners
   Details
   Lenovo Data Center Product Portfolio



   This course introduces the Lenovo data center portfolio, and covers servers, storage, storage networking, and software-defined infrastructure products. After completing this course about Lenovo data center products, you will be able to identify product types within each data center family, describe Lenovo innovations that this product family or category uses, and recognize when a specific product should be selected.

   Published: 2024-05-29
   Length: 20 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: SXXW1110r7
10. Think AI Weekly: School Safety at the Edge
    2024-05-13 | 60 minutes | Employees Only
    Details
    Think AI Weekly: School Safety at the Edge



    Join Alejandro Perez, ISG/IDG Edge Business Development, Allen Holmes with ISG AI Business Development, and Lauren Allen ISG/IDG Go To Market Strategist as they discuss school security, AI computer vision and Lenovo ThinkEdge School solutions.
    • AI solution capabilities for campus safety
    • Safety solutions with ThinkEdge SE70 and SE450
    • Walkthrough of La Jolla and other use cases

    Published: 2024-05-13
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DTAIW103
11. VTT: HCI at the Edge and Dick's Sporting Goods_May 2024
    2024-05-08 | 60 minutes | Employees Only
    Details
    VTT: HCI at the Edge and Dick's Sporting Goods_May 2024



    Join Adam Mandlebloom, ISG SDI Technical Product Manager, and Bryan Maskrey, ISG Technical Sales, as they explore Lenovo HCI solutions at the Edge and how one such solution is being positioned to resolve business challenges at a national retail company, Dick’s Sporting Goods. Topics covered will include
    • Hyperconverged Edge to Cloud today, and looking forward
    • ThinkAgile for AI/ML - Cost effective GPU utilization
    • Local Cluster Management integration
    • Decision points and architecting the solution for Dick’s Sporting Goods

    Published: 2024-05-08
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVEDG212
12. VTT: Management of Low-End Edge - March 2024
    2024-03-13 | 64 minutes | Employees Only
    Details
    VTT: Management of Low-End Edge - March 2024



    XClarity Orchestrator supports the management of both ISG XCC-based servers and IDG low-end edge devices. This session will cover the architecture of the current solution, along with a demo. In addition, a proposed new architecture for future support of low-end edge devices will be covered

    Published: 2024-03-13
    Length: 64 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVSYS207
13. Business Problems Addressed with Lenovo Data & Analytics Solutions
    2024-01-31 | 20 minutes | Employees and Partners
    Details
    Business Problems Addressed with Lenovo Data & Analytics Solutions



    Data is the quantities, characters, or symbols on which operations are performed by a computer, which is then stored and transmitted in the form of electrical signals and recorded on magnetic, optical, solid state, or mechanical recording media. All different types of organizations rely more and more on their data to gain valuable insights and improve their business. As expected, they will have challenges with gaining this insight. In this course we will discuss those challenges and problems our customers face and describe how Lenovo Data and Analytics Solutions can help customers solve each problem.

    After completing this training, you will be able to define the following common problems for databases and big data and describe how Lenovo can help customers solve each problem: scalability, management, performance, protection, security, knowledge/skill, and technology evolution.

    After completing this training, you will be able to define the following common problems for databases and big data and describe how Lenovo can help customers solve each problem: scalability, management, performance, protection, security, knowledge/skill, and technology evolution.

    Published: 2024-01-31
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSOLP200
14. Family Introduction: Edge Servers
    2024-01-22 | 18 minutes | Employees and Partners
    Details
    Family Introduction: Edge Servers



    This course introduces the concept of edge servers. Edge servers are used at the edge of an IoT environment, where they perform pre-processing of data, and data forwarding to core environments.
    Course Objectives:
    • Describe the Internet of Things (IoT)
    • Define an edge server
    • Discuss edge server features

    Published: 2024-01-22
    Length: 18 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW1105
15. Partner Technical Webinar - Tech World 23 Review
    2023-12-22 | 60 minutes | Employees and Partners
    Details
    Partner Technical Webinar - Tech World 23 Review



    In this 60-minute replay, Kenny James, Lenovo Channel Sales Engineering Director, joined us to give a Channel CTO’s perspective on this year's Tech World 2023 conference where the theme was AI for All.

    Published: 2023-12-22
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: 121523
16. Basics of the Edge Ecosystem for Sellers
    2023-12-15 | 20 minutes | Employees and Partners
    Details
    Basics of the Edge Ecosystem for Sellers



    The purpose of this learning module is to familiarize Lenovo field sales, inside sales and partners with the Edge ecosystem and how Lenovo fits into the Edge space.

    • Explain the basics of an Edge Ecosystem
    • Articulate the inherent challenges of Edge Computing
    • Present how Lenovo fits in the Edge Ecosystem

    Published: 2023-12-15
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DTEF101
17. The 10-minute Edge conversation for Lenovo Sellers
    2023-12-14 | 20 minutes | Employees and Partners
    Details
    The 10-minute Edge conversation for Lenovo Sellers



    The purpose of this course is to enable sellers to have a 10 to 15-minute customer conversation addressing the relevancy of Edge solutions to the customer business.

    Learning Objectives:

    • Prepare for the initial customer conversation
    • Hold a 10-minute Edge Operational Technology (OT) conversation
    • Take the appropriate steps to progress the sale

    Published: 2023-12-14
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DTEF103
18. Intel and Lenovo Bringing AI Everywhere
    2023-12-13 | 50 minutes | Employees Only
    Details
    Intel and Lenovo Bringing AI Everywhere



    Join Patrick Cassleman of Intel as he discusses how Lenovo and Intel can partner to help customers develop and deploy sustainable AI hardware and software from the edge to the cloud. Patrick will discuss Intel’s full AI portfolio, plus available features and tools to help your customers attain sustainable AI.

    Published: 2023-12-13
    Length: 50 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVEDG209
19. VTT: Lenovo in the Era of the Edge-June 2023
    2023-12-04 | 60 minutes | Employees and Partners
    Details
    VTT: Lenovo in the Era of the Edge-June 2023



    Join Richard Jenkins from the Lenovo Edge Computing Business Development group as he discusses how Lenovo fits in the era of the Edge. Topics covered in this VTT session include:
    - customer use cases at the Edge
    - the needed consortium to build an Edge Solution
    - Lenovo edge portfolio
    - The advantages of LOC-A and XClarity at the Edge

    Published: 2023-12-04
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DVEDG201
20. Partner Technical Webinar - ThinkEdge Portfolio Update
    2023-11-27 | 60 minutes | Employees and Partners
    Details
    Partner Technical Webinar - ThinkEdge Portfolio Update



    In this 60-minute replay, Trent Richardson, Lenovo ThinkEdge Global Solutions Leader, reviewed the total ThinkEdge portfolio. He highlighted the breadth of the portfolio as driven by customer demands and the differing requirements for the edge.

    Published: 2023-11-27
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: 111723
21. VTT: ThinkEdge SE455 V3 Deep Dive - Making a Difference at the Edge, November 2023
    2023-11-22 | 75 minutes | Employees Only
    Details
    VTT: ThinkEdge SE455 V3 Deep Dive - Making a Difference at the Edge, November 2023



    Join Geoff Hunt, Lenovo Product Line Manager, as he explores technical details of how the ThinkEdge SE455 V3 is making a difference at the Edge. Geoff will cover topics such as advantages of the flexible design, acoustics, security and more.

    Published: 2023-11-22
    Length: 75 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVEDG208
22. VTT: Edge Product Innovation, ISVs, and Market trends - AP & PRC, Oct. 2023
    2023-10-12 | 60 minutes | Employees Only
    Details
    VTT: Edge Product Innovation, ISVs, and Market trends - AP & PRC, Oct. 2023



    Join Richard Jenkins from the AP Edge solutions group as he discusses the difference between Industrial Internet of things (IoT) and Operational Technology (OT). Richard takes a look at how both are relevant to combining edge servers with hybrid cloud architecture. Topics include:
    • Integration of ISV Concepts
    • Edge serving clusters and megaclusters
    • Container designs for SE10, SE30 & SE50

    Published: 2023-10-12
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVEDG206
23. VTT: Edge Product Innovation, ISVs, and Market trends - EMEA, LA & NA, Oct. 2023
    2023-10-11 | 60 minutes | Employees Only
    Details
    VTT: Edge Product Innovation, ISVs, and Market trends - EMEA, LA & NA, Oct. 2023



    Join Per Ljungstrom and Anthony Sayers as they discuss the difference between Industrial Internet of things (IoT) and Operational Technology (OT). They look at how both are relevant to combining edge servers with hybrid cloud architecture. Topics include:
    • Integration of ISV Concepts
    • Edge serving clusters and megaclusters
    • Container designs for SE10, SE30 & SE50

    Published: 2023-10-11
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVEDG205
24. Intro to Edge: 3Ws of Edge Computing for Lenovo Sellers
    2023-09-14 | 13 minutes | Employees and Partners
    Details
    Intro to Edge: 3Ws of Edge Computing for Lenovo Sellers



    This course provides fundamental concepts and a learning foundation for those who are new to the data center and to computing at the Edge. It defines where is the Edge, identifies what are the business drivers for edge computing, and discusses why is edge computing important to Lenovo. September 2023

    Published: 2023-09-14
    Length: 13 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DTEF100
25. Lenovo Solutions for the Edge - Who Are the Customers?
    2023-09-14 | 25 minutes | Employees and Partners
    Details
    Lenovo Solutions for the Edge - Who Are the Customers?



    This course is focused on enabling sellers to identify opportunities for Lenovo Edge and Edge AI Solutions. Topics include a general overview of the Lenovo Edge portfolio and recognizing how edge computing can benefit customers.

    Course Objectives:
    • Identify Lenovo Edge Opportunities
    • Recognize how an Edge solution would benefit your customer
    • Provide a general overview of Lenovo solutions at the Edge
    • Identify key points for your customer Edge conversation

    Published: 2023-09-14
    Length: 25 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DTEF102
26. Family Portfolio - AMD Edge Servers
    2023-09-12 | 15 minutes | Employees and Partners
    Details
    Family Portfolio - AMD Edge Servers



    This course introduces edge environments, and the roles played by Lenovo AMD edge servers in those environments.
    When you have completed this course, you should be able to describe the features of the AMD edge server in the Lenovo portfolio, determine which solutions this server is best suited for, and list the customer benefits of using this server in solutions.

    Published: 2023-09-12
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW2511
27. Family Portfolio: Edge
    2023-09-12 | 15 minutes | Employees and Partners
    Details
    Family Portfolio: Edge



    This course introduces edge environments, and the roles played by Lenovo edge servers and edge clients in those environments. It looks briefly at use cases for these edge devices.
    When you have completed this course, you should be able to list the edge solutions in the Lenovo portfolio, describe the features of each solution, and determine which solution is best suited to a specific environment.

    Published: 2023-09-12
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW2513r2
28. FY24Q2 Edge Solutions Update
    2023-09-11 | 10 minutes | Employees and Partners
    Details
    FY24Q2 Edge Solutions Update



    This update is designed to help you discuss the features and customer benefits of the new Lenovo ThinkEdge SE455 V3 edge server, and to introduce an addition to the Lenovo TruScale family - TruScale for Edge.

    Published: 2023-09-11
    Length: 10 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXXW2513r2a
29. Lenovo XClarity Management Hub for Edge Server Devices
    2023-06-08 | 50 minutes | Employees and Partners
    Details
    Lenovo XClarity Management Hub for Edge Server Devices



    This course offers a comprehensive overview and demonstration of the enhanced capability to manage ThinkEdge Server Devices through Lenovo XClarity Management Hub in Lenovo XClarity Orchestrator (LXCO).

    Published: 2023-06-08
    Length: 50 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DXCO201
30. Lenovo XClarity Management Hub for Edge Client Devices
    2023-06-08 | 50 minutes | Employees and Partners
    Details
    Lenovo XClarity Management Hub for Edge Client Devices



    This course offers a comprehensive overview and demonstration of the enhanced capability to manage ThinkEdge Client Devices through Lenovo XClarity Management Hub in Lenovo XClarity Orchestrator (LXCO).

    Published: 2023-06-08
    Length: 50 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DXCO202
