Lenovo ThinkSystem DM5200H Unified Storage Array

Lenovo ThinkSystem DM5200H Unified Storage Array is a hybrid flash unified storage system, designed to provide performance, simplicity, capacity, security, and high availability for medium-sized enterprises. Powered by the ONTAP storage management software, the DM5200H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options and enhanced data storage solutions. The DM5200H is a perfect fit for a wide range of enterprise workloads, including artificial intelligence, archive / backup, big data and analytics, Compliance Data, Databases, Data Consolidation, File Shares, engineering and design, enterprise applications, and other storage I/O-intensive applications.

ThinkSystem DM5200H models are 2U rack-mount enclosure that includes two controllers, with 128 GB of RAM and 2x 2TB Flash Cache drives. Each controller provides adapter support for 25/10 GbE, 100/40 GbE, 12G SAS, or 64/32/16 Gb Fibre Channel (FC) ports for host connectivity, depending on configuration.

A single ThinkSystem DM5200H Storage Array scales up to 480 NLSAS drives with the attachment of 8x DM600S 4U60 LFF expansion enclosures. Also depending on the expansions attached DM5200H supports up to 120 SSD drives. The DM5200H supports up to 144 TiB of Flash Cache.

Figure 1. Lenovo ThinkSystem DM5200H Unified Storage Array

Lenovo ThinkSystem DM5200H Unified Storage Array offers end-to-end hybrid flash storage connectivity.

• 2U/24 NVMe Controller
• Simplify at scale by tiering, backup, and creating an air-gapped cyber vault on the same ONTAP as the rest of your hybrid cloud environment. Scales from 12 to 480 drives
• NVMe and NLSAS support only

• Further reduce reboots during ONTAP® upgrades

  • Single reboot for new systems with ONTAP 9.16.1
  • Significant reduction in time required for ONTAP upgrade

The ThinkSystem DM5200H offers the following key features and benefits

• Available as a Unified storage platform - allowing NAS, SAN, and Object workloads.
• All systems are available with either the Essentials or Complete software feature offerings which provide feature flexibility.
• Compact NVMe Flash storage system delivering high-performance and low-latency at an affordable price point, enabling customers of all sizes to enhance their analytics and AI deployments and accelerate applications’ access to data.
• All-flash array capabilities to meet the demand for higher speed storage and provide higher IOPs and bandwidth with lower power usage and total cost of ownership than hybrid or HDD-based solutions.
• All-flash storage with dual active/active controller configurations for high availability and performance.
• A rich set of storage management functions available, including snapshots, volume cloning, quality of service, thin provisioning, compression, deduplication, encryption, disk-based backup, application- and virtual machine-aware backup, quick data recovery, clustering, synchronous replication, and asynchronous replication.
• Improved performance and data protection with RAID-DP and RAID-TEC, as well as support for traditional RAID 4.
• Flexible host connectivity to match diverse client needs with support for unified NAS, SAN, and object storage protocols, including 25/10 GbE NAS and iSCSI, 64/32/16 Gb Fibre Channel connectivity, and 64 Gb NVMe over Fibre Channel (NVMe/FC).
• SAS drive-side connectivity with multipathing with 2.5-inch small form factor (SFF) drives in the expansion enclosure. Supported expansions are: 20x DM120S (7D7X), 5x DM240S (7D7Y), 8x DM600S (7D7Z).
• Intuitive, web-based GUI for easy system setup and management.
• Lenovo XClarity support for centralized systems management of Lenovo x86 servers, switches, and storage, which provides automated agent-less discovery, inventory, monitoring, and additional platform-specific functions across multiple systems.
• Designed for 99.9999% availability with redundant hot-swap components, including controllers and I/O modules, power supplies, and non-disruptive firmware upgrades.

The DM5200H supports only 2 Flash Cache drives in the controller enclosure. All expansion enclosure drives are dual-port and hot-swappable. Base units support attachment of either DM120S, DM240S or DM600S expansion enclosures and drives are designed to be added dynamically, which helps to quickly and seamlessly respond to ever-growing capacity demands.

The base units offer high levels of system and data availability with the following features:

• Dual-active controllers (high availability pair) with automatic load balancing and failover
• Mirrored, battery-backed controller NVMEM (16 GB per controller)
• Dual-port SSDs with automatic drive failure detection and rebuild
• Redundant, hot-swappable and customer replaceable hardware components, including transceivers, controllers, I/O modules, power supplies, and drives
• Automated failover for the data path between the host and the drives with multipathing
• Non-disruptive controller and drive firmware upgrades
• Scale-out clustering
• Persistent write log; NVlog written to flash if unplanned power loss occurs
• MCC IP

The following table lists the Lenovo ThinkSystem DM5200H Unified Storage Array system specifications.

Note: The supported hardware options, software features, and interoperability listed in this product guide are based on the ONTAP software version 9.16.1. For details about specific software releases that introduced support for certain hardware options and software features, refer to the Release notes of the particular software release for the ThinkSystem DM5200H that can be found at:
http://datacentersupport.lenovo.com

* For Category 1 operating system support information, see Lenovo Storage Interoperation Center (LSIC).
** For Category 2 operating system support information, see the latest Category 2 Interoperability Matrix. Go to the Lenovo Storage Interoperation Center (LSIC) home page and scroll down to the Lenovo Information section and click the Download Lenovo 3rd party of interop matrix link.
† For a detailed list of configuration limits and restrictions for a specific version of the software, refer to the Lenovo Data Center Support website:
http://datacentersupport.lenovo.com

The following table lists the CTO base models (Factory-integrated models) for the  the Lenovo ThinkSystem DM5200H Unified Storage Array which are configured by using the Lenovo Data Center Solution Configurator (DCSC), http://dcsc.lenovo.com

The ThinkSystem DM5200H enclosure ship with two NVMe controllers. A controller provides interfaces for host connectivity, management, and internal drives, and it runs ONTAP storage management software. The DM5200H enclosure provides 128 GB RAM and 8 GB NVMEM per controller

Each DM5200H controller has two interconnect ports to cable a directly-connected dual-controller HA pair or for switched cluster interconnect with multiple dual-controller HA pairs. Up to six HA pairs can be combined into a single SAN cluster or up to 12 HA pairs can be combined into a single NAS cluster.

• DM5200H 2x 100 GbE ports

Each controller also has the following host interfaces:

• 4x slots for host interfaces using HIC adapters; choices of HIC adapters are:
  • 25GbE HIC, with 4x 10/25 GbE SFP28 (DAC cables or SW fiber optic cables, LC)
  • 100GbE HIC, with 2x 100 GbE QSFP28 (DAC cables or SW fiber optic cables, MPO)
  • Fibre Channel HIC, with 4x 16/32/64 Gb FC SFP+ host ports, 32/64 Gb transceivers included (SW fiber optic cables, LC)

Two controllers are required for selection and must have the same HIC adapters installed.

The following table lists the controllers for the DM5200H Storage Array and supported connectivity options.

The following table lists the supported optical and copper cables.

The ThinkSystem DM5200H supports attachment of DM120S, DM240S and  DM600S expansion enclosures. The expansion enclosure can be added to the system non-disruptively.

The models of the ThinkSystem DM120S, DM240S, and DM600S ship with the following items:

• One chassis with the following components:
  • Two I/O modules
  • Two power supplies
  • Two cooling modules (4U60 LFF only)
• Rack Mount Kit
• Electronic Publications Flyer
• Two customer-configured power cables

Drives are supported in the ThinkSystem DM5200H 2U24 enclosure and in the DM120S, DM240S and DM600S shelves (expansion enclosures).

Currenlty, two drives only: bay 0, bay23 (for FlashCache) are supported in the base ThinkSystem DM5200H 2U24 enclosure. See the DM5200H front view section for details

HA pair requires external storage such as: DM120S, DM240S and DM600S.

Supported drives are:

• NVMe and NLSAS support only
• Scale from 12 to 480 drives
• NVMe and NLSAS support only
• 10K SAS drives are not supported
• Drives are quotable at point of sale
• Drives are sold in packs for the following units:
  • The DM5200H 2U24 SFF controller enclosure supports only 2 flash drives
  • The DM120S 2U12 LFF expansion enclosure supports only 12 LFF drives
  • The DM240S 2U24 SFF expansion enclosure supports only 24 SFF drives
  • The DM600S 4U60 LFF expansion enclosure supports only 60 LFF drives

The following table lists supported drive packs for the controller and expansion enclosures.

Configuration notes:

The following table summarizes the features in each bundle for the DM5200H.

* Requires the encryption version of ONTAP. See the ONTAP software section
† Not available in PRC

The features are summarized as follows:

• RAID-4, RAID-DP, and RAID-TEC data protection: Provides the flexibility to choose the level of data protection required and helps improve performance and availability with built-in spare capacity and by distributing data across all physical drives in the aggregate, sustaining to up to one (RAID-4), two (RAID-DP), or three (RAID-TEC) concurrent drive failures.
• All Flash Array (AFA) capability: Meets the demand for higher speed, lower latency storage and provides higher IOPS and bandwidth with lower power usage and total cost of ownership than hybrid or HDD-based solutions.
• Thin provisioning: Optimizes efficiency by allocating storage space based on the minimum space required by each application at any given time, so that applications consume only the space they are actually using, not the total space that has been allocated to them, which allows customers to purchase storage they need today and add more as application requirements grow.
• Compression: Provides transparent inline and post-process data compression to reduce the amount of storage that customers need to purchase and manage.
• Compaction: enhances compression to further reduce the amount of storage that customers need to purchase and manage.
• Deduplication: Performs general-purpose deduplication for removal of redundant data to reduce the amount of storage that customers need to purchase and manage.
• Snapshots: Enables creation of read-only copies of data for backup, parallel processing, testing, and development, and have the copies available almost immediately.
• Encryption: Provides software-based encryption for data at rest for enhanced data security with the traditional drives and embedded key management (requires the encryption-capable version of the ONTAP software).
• Balanced placement: Provides automated workload distribution across the cluster to help increase utilization and performance.
• Dynamic capacity expansion: Allows the capacity of a volume or aggregate to be expanded by adding new physical drives.
• Adaptive Quality of Service: Simplifies operations and maintains consistent workload performance by defining QoS policies and automatically adjusting storage resources to respond to workload changes.
• SnapRestore: Enables quick recovery of data by reverting a local volume or file to its previous state from a particular snapshot copy stored on the file system.
• FlexClone: References snapshot metadata to create writable point-in-time copies of a volume.
• FlexVol: Provides abstraction layer between the logical volume and its physical location in the storage array.
• FlexCache: Speeds up access to data and offloads traffic from heavily accessed volumes for read-intensive workloads by placing frequently used data in cache locally or remotely (closer to the point of client access) and serving the data to the clients directly from cache without accessing the data source.
• SnapMirror asynchronous replication: Provides storage system-based data replication between the storage systems containing source (local) and destination (remote) volumes by using asynchronous (at specified regular intervals) data transfers over IP communication links.
• SyncMirror data protection: Adds extra level of data protection and availability by mirroring a pair of RAID aggregates.
• Trusted Platform Module (TPM): For encryption enabled systems.  The encryption keys for the onboard key manager (OKM) are no longer stored in the boot device, but instead are stored in the physical TPM for systems so equipped, offering greater security and protection. Moving to the TPM is a nondisruptive process.
• MetroCluster IP: Provides storage system-based clustering with online, real-time data mirroring between the local and remote sites by using synchronous data transfers over IP communication links to deliver continuous availability with zero RPO and near-zero RTO. All storage systems in a MetroCluster IP configuration must be of the same model. New to ONTAP 9.11: MetroCluster with Storage Virtual Machine Disaster Recovery (SVM-DR) can now use a third site for the SVM-DR
• NVMe over FC Protocol: Enables NVMe over FC
• NVMe over TCP Protocol: Enables NVMe over TCP
• Data Protection Optimized (DPO): Increases the amount of concurrent SnapMirror sessions per node, as well as improving SnapMirror performance to the cluster.
• SnapMirror Business Continuity (SMBC): Non-disruptive failover active-active cross site clusters. Based on existing SnapMirror Synchronous Replication. Offers Zero data loss, zero downtime. You do not have to failover the application. If there is a failure the application will continue to run and there will be no need to restart.
• SnapMirror synchronous replication: Provides storage system-based data replication between the storage systems containing source (local) and destination (remote) volumes by using synchronous (as soon as the data is written to the source volume)
• FlexGroup: Enables a single volume to span across multiple clustered storage arrays to maximize storage capacity and automate load distribution. New to ONTAP 9.11: FlexGroups can now be created as SnapLock volumes.
• SnapVault disk-based storage backup: Enables data stored on multiple systems to be backed up to a central, secondary system quickly and efficiently as read-only snapshot copies.
• SnapCenter: Provides application- and virtual machine-aware backup and restoration of data by using the Snapshots technology and leverages the SnapMirror capabilities of storage systems to provide onsite or offsite backup set mirroring for disaster recovery.
• ONTAP S3: Expands the DM Series unified story and allows customers to manage, block, file, and object data from one interface. Customers can now natively store data in S3 buckets onboard the DM Series.
• ONTAP S3 SnapMirror : Enables you to protect buckets in ONTAP S3 object stores using familiar SnapMirror mirroring and backup functionality. Requires ONTAP 9.11 or later on both source and destination clusters. Requires the Unified Premium Bundle.
• SnapMirror Cloud: A backup and recovery technology designed for ONTAP users who want to transition their data protection workflows to the cloud. SnapMirror Cloud is an extension to the family of SnapMirror replication technologies. While SnapMirror is frequently used for ONTAP-to-ONTAP backups, SnapMirror Cloud uses the same replication engine to transfer Snapshot copies for ONTAP to S3-compliant object storage backups.
• Multitenant Key Management (MTKM): Provides the ability for individual tenants or storage virtual machines (SVMs) to maintain their own keys through KMIP for NVE. With multitenant external key management, you can centralize your organization’s key management functions by department or tenant while inherently confirming that keys are not stored near the assets. This approach decreases the possibility of compromise.
• Anti-ransomware: Uses workload analysis in NAS (NFS and SMB) environments to proactively detect and warn about abnormal activity that might indicate a ransomware attack. When an attack is suspected, anti-ransomware also creates new Snapshot backups, in addition to existing protection from scheduled Snapshot copies. New to ONTAP 9.11: Optional multi-admin verification to approve administration functions that could result in data loss.
• FabricPool: FabricPool is a hybrid storage solution that uses an all flash (all SSD) aggregate as the performance tier and an object store as the external capacity tier. Data in a FabricPool is stored in a tier based on whether it is frequently accessed or not. Using a FabricPool helps you reduce storage cost without compromising performance, efficiency, or protection.
• No license is required when tiering to StorageGRID or ONTAP S3.
• SnapLock data protection: Creates Write-Once-Read-Many (WORM) non-rewritable, non-erasable data on hard disk drives to prevent files from being altered or deleted until a predetermined or default retention date.

Software maintenance is included in the DM5200H warranty and support (see Warranty and support for details).

The ThinkSystem DM5200H supports the following management interfaces:

• Lenovo ThinkSystem Storage Manager, a web-based interface via HTTPS for single-system management or centralized management of the cluster of systems, that runs on the storage system itself and requires only a supported browser (Microsoft Internet Explorer, Google Chrome, or Mozilla Firefox), so there is no need for a separate console or plug-in.
• Command line interface (CLI) via SSH or through serial console.
• Syslog, SNMP, and e-mail notifications.
• Optional Lenovo XClarity for discovery, inventory, monitoring, and alerts.

The ThinkSystem DM5200H base enclosures ship with two redundant hot-swap 1600 W (200-240 V) Platinum AC power supplies, each with an IEC 320-C14 connector.

The ThinkSystem DM120S 2U12 LFF and DM240S 2U24 SFF expansion enclosures ship with two redundant hot-swap 913 W (100 - 240 V) Platinum AC power supplies, each with an IEC 320-C14 connector.

The ThinkSystem DM600S 4U60 LFF expansion enclosures ship with two redundant hot-swap 2325 W (200 - 240 V)Platinum AC power supplies, each with an IEC 320-C20 connector.

Each ThinkSystem DM Series enclosure requires the selection of two power cables.

The individually shipped ThinkSystem DM5200H and DM120S, DM240S, DM600S enclosures come with the ThinkSystem Storage Rack Mount Kit 2U24/4U60 listed in the following table.

When the ThinkSystem DM5200H enclosure is factory-integrated and shipped installed in a rack cabinet, the rack mount kits that support Ship-in-Rack (SIR) capabilities are derived by the configurator. The SIR-capable rack mount kits are listed in the following tables.

The following table summarizes the rack mount kit features and specifications.

* The majority of the enclosure components can be serviced from the front or rear of the enclosure, which does not require the removal of the enclosure from the rack cabinet.
** If a 0U PDU is used, the rack cabinet must be at least 1000 mm (39.37 in.) deep for 2U24 enclosures.
^ Measured when mounted on the rack, from the front surface of the front mounting flange to the rear most point of the rail.

When the ThinkSystem DM expansion enclosures are factory-integrated and shipped installed in a rack cabinet, the rack mount kits that support Ship-in-Rack (SIR) capabilities are derived by the configurator.

The following table summarizes the rack mount kit features and specifications.

‡ The rack cabinet must be at least 1100 mm (43.31 in.) deep for 4U60 enclosures.
* The majority of the enclosure components can be serviced from the front or rear of the enclosure, which does not require the removal of the enclosure from the rack cabinet.
** If a 0U PDU is used, the rack cabinet must be at least 1000 mm (39.37 in.) deep for 2U12 and 2U24 enclosures, or at least 1200 mm (47.24 in.) deep for 4U and 4U60 enclosures.
^ Measured when mounted on the rack, from the front surface of the front mounting flange to the rear most point of the rail.

The ThinkSystem DM5200H controller enclosure has the following dimensions and weight:

• Height: 87 mm (3.4 in.)
• Width with flange: 483 mm (19 in.)
• Width without flange: 447 mm (17.6 in.)
• Depth: 543 mm (21.4 in.)
• Weight (fully configured): 24.6 kg (54.3 lb)

The ThinkSystem DM120S 2U12 LFF enclosures have the following dimensions and weight (approximate):

• Height: 85 mm (3.4 in.)
• Width: 447 mm (17.6 in.)
• Depth: 483 mm (19.0 in.)
• Weight (fully configured): 28.7 kg (63.3 lb)

The ThinkSystem DM240S 2U24 SFF enclosures have the following dimensions and weight (approximate):

• Height: 85 mm (3.4 in.)
• Width: 449 mm (17.7 in.)
• Depth: 484 mm (19.1 in.)
• Weight (fully configured): 24.4 kg (53.8 lb)

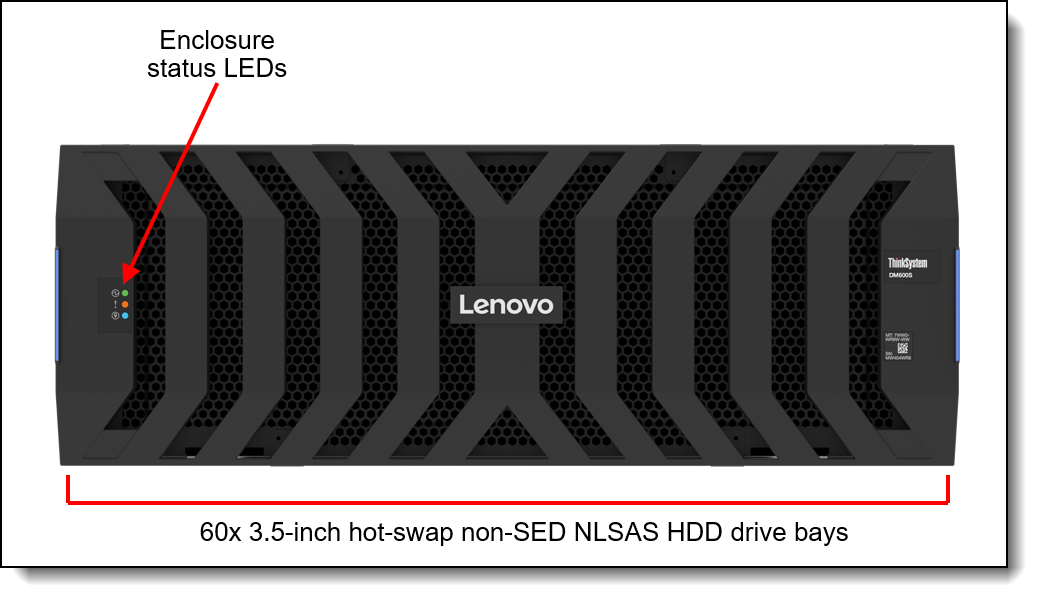

The ThinkSystem DM600S 4U60 LFF enclosures have the following dimensions and weight (approximate):

• Height: 174 mm (6.9 in.)
• Width: 449 mm (17.7 in.)
• Depth: 922 mm (36.3 in.)
• Weight (fully configured): 111.5 kg (245.8 lb)

The ThinkSystem DM5200H, DM120S 2U12 LFF, DM240S 2U24 SFF and DM600S 4U60 LFF enclosures are supported in the following environment:

• Air temperature:
  • Operating:
    • DM5200H: 10 °C - 35 °C (50 °F - 95 °F)
    • DM120S 2U12 LFF and DM240S 2U24 SFF: 10 °C - 40 °C (50 °F - 104 °F)
    • DM600S 4U60 LFF: 5 °C - 40 °C (41 °F - 104 °F)
  • Non-operating: -40 °C - +70 °C (-40 °F - 158 °F)
  • Maximum altitude: 3050 m (10,000 ft)
• Relative humidity (non-condensing):
  • Operating:
    • DM5200H: 8% - 80%
    • DM240S 2U24 SFF and DM120S 2U12 LFF: 20% - 80%
    • DM600S 4U60 LFF: 8% - 85%
  • Non-operating: 10% - 95%
• Electrical power:
  • DM5200H
    • 200 to 240 (nominal) V AC; 50 Hz or 60 Hz; 8.06 A
    • Maximum system power load: 1579 W
  • DM240S 2U24 SFF
    • 100 to 127 (nominal) V AC; 50 Hz or 60 Hz; 4.11 A
    • 200 to 240 (nominal) V AC; 50 Hz or 60 Hz; 2.05 A
    • Maximum system power load: 390 W
  • DM120S 2U12 LFF
    • 100 to 127 (nominal) V AC; 50 Hz or 60 Hz; 3.56 A
    • 200 to 240 (nominal) V AC; 50 Hz or 60 Hz; 1.78 A
    • Maximum system power load: 338 W
  • DM600S 4U60 LFF
    • 200 to 240 (nominal) V AC; 50 Hz or 60 Hz; 8.11 A
    • Maximum system power load: 1541 W
• Heat dissipation:
  • 4066 BTU/Hr (maximum), 2435 BTU/Hr (typical)
  • DM240S 2U24 SFF: 1331 BTU/hour
  • DM120S 2U12 LFF: 1153 BTU/hour
  • DM600S 4U60 LFF: 5258 BTU/hour
• Acoustical noise emission:
  • DM5200H: 8.0 bels
  • DM240S 2U24 SFF: 6.9 bels
  • DM120S 2U12 LFF: 6.3 bels
  • DM600S 4U60 SFF: 7.2 bels

The DM5200H and expansion enclosure have a  3-year warranty based on the machine type of the system:

• Lenovo ThinkSystem DM5200H Unified Storage Array: 7DJ1 (3-year warranty)
• Lenovo ThinkSystem DE120S LFF Expansion Enclosure: 7D7X (3-year warranty)
• Lenovo ThinkSystem DE240S LFF Expansion Enclosure: 7D7Y (3-year warranty)
• Lenovo ThinkSystem DE600S LFF Expansion Enclosure: 7D7Z (3-year warranty)

For more information, consult the brochure Lenovo Operational Support Services for Data Centers Services.

Lenovo Data Center Services empower you at every stage of your IT lifecycle. From expert advisory and strategic planning to seamless deployment and ongoing support, we ensure your infrastructure is built for success. Our comprehensive services accelerate time to value, minimize downtime, and free your IT staff to focus on driving innovation and business growth.

In this section:

• Lenovo Advisory Services
• Lenovo Plan & Design Services
• Lenovo Deployment, Migration, and Configuration Services
• Lenovo Support Services
• Lenovo Managed Services
• Lenovo Sustainability Services

Lenovo Deployment, Migration, and Configuration Services

Optimize your IT operations by shifting labor-intensive functions to Lenovo's skilled technicians for seamless on-site or remote deployment, configuration, and migration. Enjoy peace of mind, faster time to value, and comprehensive knowledge sharing with your IT staff, backed by our best-practice methodology.

• Deployment Services for Storage and ThinkAgile

  A comprehensive range of remote and onsite options tailored specifically for your business needs to ensure your storage and ThinkAgile hardware are fully operational from the start.

• Hardware Installation Services

  A full-range, comprehensive setup for your hardware, including unpacking, inspecting, and positioning components to ensure your equipment is operational and error-free for the most seamless and efficient installation experience, so you can quickly benefit from your investments.

• DM/DG File Migration Services

  Take the burden of file migration from your IT’s shoulders. Our experts will align your requirements and business objectives to the migration plans while coordinating with your team to plan and safely execute the data migration to your storage platforms.

• DM/DG/DE Health Check Services

  Our experts perform proactive checks of your Firmware and system health to ensure your machines are operating at peak and optimal efficiency to maximize up-time, avoid system failures, ensure the security of IT solutions and simplify maintenance.

• Factory Integrated Services

  A suite of value-added offerings provided during the manufacturing phase of a server or storage system that reduces time to value. These services aim at improving your hardware deployment experience and enhance the quality of a standard configuration before it arrives at your facility.

Lenovo Support Services

In addition to response time options for hardware parts, repairs, and labor, Lenovo offers a wide array of additional support services to ensure your business is positioned for success and longevity. Our goal is to reduce your capital outlays, mitigate your IT risks, and accelerate your time to productivity.

• Premier Support for Data Centers

  Your direct line to the solution that promises the best, most comprehensive level of support to help you fully unlock the potential of your data center.

• Premier Enhanced Storage Support (PESS)

  Gain all the benefits of Premier Support for Data Centers, adding dedicated storage specialists and resources to elevate your storage support experience to the next level.

• Committed Service Repair (CSR)

  Our commitment to ensuring the fastest, most seamless resolution times for mission-critical systems that require immediate attention to ensure minimal downtime and risk for your business. This service is only available for machines under the Premier 4-Hour Response SLA.

• Multivendor Support Services (MVS)

  Your single point of accountability for resolution support across vast range of leading Server, Storage, and Networking OEMs, allowing you to manage all your supported infrastructure devices seamlessly from a single source.

• Keep Your Drive (KYD)

  Protect sensitive data and maintain compliance with corporate retention and disposal policies to ensure your data is always under your control, regardless of the number of drives that are installed in your Lenovo server.

• Technical Account Manager (TAM)

  Your single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time, ensuring smooth operations and optimized performance as your business grows.

• Enterprise Software Support (ESS)

  Gain comprehensive, single-source, and global support for a wide range of server operating systems and Microsoft server applications.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers.

Lenovo Managed Services

Achieve peak efficiency, high security, and minimal disruption with Lenovo's always-on Managed Services. Our real-time monitoring, 24x7 incident response, and problem resolution ensure your infrastructure operates seamlessly. With quarterly health checks for ongoing optimization and innovation, Lenovo's remote active monitoring boosts end-user experience and productivity by keeping your data center's hardware performing at its best.

Lenovo Managed Services provides continuous 24x7 remote monitoring (plus 24x7 call center availability) and proactive management of your data center using state-of-the-art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals.

Quarterly reviews check error logs, verify firmware & OS device driver levels, and software as needed. We’ll also maintain records of latest patches, critical updates, and firmware levels, to ensure you systems are providing business value through optimized performance.

Lenovo Sustainability Services

• Asset Recovery Services

  Lenovo Asset Recovery Services (ARS) provides a secure, seamless solution for managing end-of-life IT assets, ensuring data is safely sanitized while contributing to a more circular IT lifecycle. By maximizing the reuse or responsible recycling of devices, ARS helps businesses meet sustainability goals while recovering potential value from their retired equipment. For more information, see the Asset Recovery Services offering page.

• CO2 Offset Services

  Lenovo’s CO2 Offset Services offer a simple and transparent way for businesses to take tangible action on their IT footprint. By integrating CO2 offsets directly into device purchases, customers can easily support verified climate projects and track their contributions, making meaningful progress toward their sustainability goals without added complexity.

• Lenovo Certified Refurbished

  Lenovo Certified Refurbished offers a cost-effective way to support IT circularity without compromising on quality and performance. Each device undergoes rigorous testing and certification, ensuring reliable performance and extending its lifecycle. With Lenovo’s trusted certification, you gain peace of mind while making a more sustainable IT choice.

Lenovo TruScale XaaS is your set of flexible IT services that makes everything easier. Streamline IT procurement, simplify infrastructure and device management, and pay only for what you use – so your business is free to grow and go anywhere.

Lenovo TruScale is  the unified solution that gives you simplified access to:

• The industry’s broadest portfolio – from pocket to cloud – all delivered as a service
• A single-contract framework for full visibility and accountability
• The global scale to rapidly and securely build teams from anywhere
• Flexible fixed and metered pay-as-you-go models with minimal upfront cost
• The growth-driving combination of hardware, software, infrastructure, and solutions – all from one single provider with one point of accountability.

For information about Lenovo TruScale offerings that are available in your region, contact your local Lenovo sales representative or business partner.

The ThinkSystem DM Series enclosures conform to the following regulations:

• United States: FCC Part 15, Class A; UL 60950-1
• Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1
• Mexico NOM
• European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1); ROHS Directive 2011/65/EU
• Russia, Kazakhstan, Belarus: EAC
• China: CCC GB 4943.1, GB 17625.1, GB 9254 Class A; CELP; CECP
• Japan: VCCI, Class A
• Taiwan: BSMI CNS 13438, Class A; CNS 14336-1
• Korea KN32/35, Class A
• Australia/New Zealand: AS/NZS CISPR 22 Class A

Lenovo provides end-to-end storage compatibility testing to deliver interoperability throughout the network. The ThinkSystem DMxx00F Unified Flash Storage Array supports attachment to Lenovo servers by using NVMe over Fibre Channel (NVMe/FC), NAS (NFS and CIFS/SMB), iSCSI, and Fibre Channel storage connectivity.

For end-to-end storage configuration support, refer to the Lenovo Storage Interoperation Center (LSIC):
https://datacentersupport.lenovo.com/us/en/lsic

Use the LSIC to select the known components of your configuration and then get a list all other supported combinations, with details about supported hardware, firmware, operating systems, and drivers, plus any additional configuration notes. View results on screen or export them to Excel.

The following lists the Ethernet storage switches that can be used with the ThinkSystem DM5200H for cluster interconnect and MetroCluster IP configurations.

• BES-53248
• Nvidia SN2100
• Cisco 9336C-FX2 (Preferred switch)

For more information, see the BES-53248 Ethernet Storage Switch for Lenovo Product Guide:
http://lenovopress.com/lp1226

For more information, see the Nvidia SN2100 Switch for Lenovo Product Guide:
https://lenovopress.lenovo.com/lp1756-nvidia-sn2100-100gb-ethernet-storage-switch

Lenovo offers the ThinkSystem DB Series of Fibre Channel SAN switches for high-performance storage expansion. See the DB Series product guides for models and configuration options:

• ThinkSystem DB Series SAN Switches:
  https://lenovopress.com/storage/switches/rack#rt=product-guide

The following table lists the supported rack cabinets.

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference

For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks

The following table lists the power distribution units (PDUs) that are offered by Lenovo.

For more information, see the Lenovo Press documents in the PDU category:
https://lenovopress.com/servers/options/pdu

The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo.

For more information, see the list of Product Guides in the UPS category:
https://lenovopress.com/servers/options/ups

Why wait to obtain the technology you need now? No payments for 90 days and predictable, low monthly payments make it easy to budget for your Lenovo solution.

• Flexible

  Our in-depth knowledge of the products, services and various market segments allows us to offer greater flexibility in structures, documentation and end of lease options.

• 100% Solution Financing

  Financing your entire solution including hardware, software, and services, ensures more predictability in your project planning with fixed, manageable payments and low monthly payments.

• Device as a Service (DaaS)

  Leverage latest technology to advance your business. Customized solutions aligned to your needs. Flexibility to add equipment to support growth. Protect your technology with Lenovo's Premier Support service.

• 24/7 Asset management

  Manage your financed solutions with electronic access to your lease documents, payment histories, invoices and asset information.

• Fair Market Value (FMV) and $1 Purchase Option Leases

  Maximize your purchasing power with our lowest cost option. An FMV lease offers lower monthly payments than loans or lease-to-own financing. Think of an FMV lease as a rental. You have the flexibility at the end of the lease term to return the equipment, continue leasing it, or purchase it for the fair market value. In a $1 Out Purchase Option lease, you own the equipment. It is a good option when you are confident you will use the equipment for an extended period beyond the finance term. Both lease types have merits depending on your needs. We can help you determine which option will best meet your technological and budgetary goals.

Ask your Lenovo Financial Services representative about this promotion and how to submit a credit application. For the majority of credit applicants, we have enough information to deliver an instant decision and send a notification within minutes.

The following sales training courses are offered for employees and partners (login required). Courses are listed in date order.

1. How to Order DM and DE Services Through DCSC
   2025-02-07 | 15 minutes | Employees and Partners
   Details
   How to Order DM and DE Services Through DCSC



   The goal of this training is to provide Lenovo sellers and business partners with an overview of the available services for ThinkSystem DM and DE.

   Learning Objectives:

   - Review what is included in each service
   - Describe the benefits of each service
   - Demonstrate how to order
   - Discover where to go for more details

   Tags: Services

   Published: 2025-02-07
   Length: 15 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: DSVC134r4
2. Partner Technical Webinar - Cost Effective Storage Solutions
   2025-01-14 | 60 minutes | Employees and Partners
   Details
   Partner Technical Webinar - Cost Effective Storage Solutions



   In this 60-minute replay, Lenovo Storage Architect, Dan Beins presented Lenovo’s strategy, capabilities, and portfolio for Data Management. Dan did a super job going beyond the product feature / function and talking about where our products bring value to our customer’s Data Management.

   Tags: Data Management

   Published: 2025-01-14
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: 011025
3. How to Attach Services for ThinkSystem DM Using DCSC
   2024-12-23 | 20 minutes | Employees and Partners
   Details
   How to Attach Services for ThinkSystem DM Using DCSC



   The goal of this training is to review services for ThinkSystem DM products, professional and support services, support levels, and recommended options. By the end of this course, you will be able to summarize the professional services for ThinkSystem DM, identify the levels of maintenance support for the DM series, and recognize the steps required to attach services to DM products.

   Tags: Services, ThinkSystem

   Published: 2024-12-23
   Length: 20 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: DSVC122r4
4. ThinkSystem DM and DE Series Technical Overview
   2024-10-15 | 30 minutes | Employees and Partners
   Details
   ThinkSystem DM and DE Series Technical Overview



   This course provides a technical overview of the ThinkSystem DM and DE series products. Course DDMO101 – Lenovo ThinkSystem DM & DE Series Overview is recommended prior to this course.
   By the end of this course, you should be able to:
   - Describe the Lenovo portfolio for the DM and DE storage systems
   - Explain features of the DM series ONTAP software
   - Explain features of the ThinkSystem SAN Manager

   Tags: Data Management, Storage

   Published: 2024-10-15
   Length: 30 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: DDMT100r2
5. Lenovo ThinSystem DG/DM Storage Series Portfolio Overview
   2024-09-10 | 60 minutes | Employees and Partners
   Details
   Lenovo ThinSystem DG/DM Storage Series Portfolio Overview



   This course builds on what you’ve learned in the Data Management Overview course. The course will help position the Lenovo ThinkSystem DG and DM series storage products. Completing this course will help you:
   - understand the advantages of each product line and
   - understand the key features and relate them to a range of customer business needs, whether small-scale or enterprise-level storage needs

   Tags: Data Management, Storage, ThinkSystem

   Published: 2024-09-10
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: DDMO103
6. Lenovo Data Center Product Portfolio
   2024-05-29 | 20 minutes | Employees and Partners
   Details
   Lenovo Data Center Product Portfolio



   This course introduces the Lenovo data center portfolio, and covers servers, storage, storage networking, and software-defined infrastructure products. After completing this course about Lenovo data center products, you will be able to identify product types within each data center family, describe Lenovo innovations that this product family or category uses, and recognize when a specific product should be selected.

   Tags: Advanced DataCenter, DataCenter Products, ThinkAgile, ThinkEdge, ThinkSystem

   Published: 2024-05-29
   Length: 20 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: SXXW1110r7
7. VTT Data Management How to sell storage - April 2024
   2024-04-10 | 60 minutes | Employees Only
   Details
   VTT Data Management How to sell storage - April 2024



   In this course, you will know:

   - Why do we sell storage?
   - What are the basics you need to get an opportunity rolling?
   - Why Lenovo for Storage?
   - What is happening in the market today?
   - How to determine traction?

   Tags: Data Management, Storage

   Published: 2024-04-10
   Length: 60 minutes


   Start the training:
   Employee link: Grow@Lenovo


   Course code: DVDAT209
8. Lenovo Data Backup and Recovery Solution Overview
   2024-03-25 | 40 minutes | Employees and Partners
   Details
   Lenovo Data Backup and Recovery Solution Overview



   The goal of this course is to give Lenovo sellers and business partners an overview of the Data Backup and Recovery solution. This course includes general information about backup, archive, disaster, nomenclature and key terms for back and recovery, and Lenovo features and alliance partners software.

   Tags: Data Management

   Published: 2024-03-25
   Length: 40 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: DSOLO200
9. ONTAP Technical Positioning
   2024-03-14 | 45 minutes | Employees and Partners
   Details
   ONTAP Technical Positioning



   This course focuses on enabling you to interpret the technical market trends and challenges that ONTAP customers face. You also learn to ask qualifying questions that identify which industries, companies, and customer contacts are appropriate targets for ONTAP software. Module two covers explaining ONTAP features and functionality and enabling you to strengthen ONTAP marketing claims with technical details.
   Learning Objectives:
   •Interpret the technical market trends and challenges that ONTAP customers face
   •Ask qualifying questions that identify which industries, companies, and customer contacts are appropriate targets for ONTAP software
   •Explain ONTAP features and functionality
   •Strengthen ONTAP marketing claims with technical details

   Tags: Data Management, Sales, Storage, Technical Sales, ThinkSystem

   Published: 2024-03-14
   Length: 45 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: DDMT200r2
10. Data management Overview
    2024-03-14 | 25 minutes | Employees and Partners
    Details
    Data management Overview



    After completing this course you will be able to:
    1. Know more about the data management trends and challenges
    2. Understand the data management portfolio
    3. Find out how data drives business value

    Tags: Data Management, Storage, ThinkSystem

    Published: 2024-03-14
    Length: 25 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSTOO201
11. VTT ONTAP 9.14.1 and Bundle Change Update - February 2024
    2024-03-07 | 25 minutes | Employees and Partners
    Details
    VTT ONTAP 9.14.1 and Bundle Change Update - February 2024



    In this course, you will know more about:
    - The new Features of ONTAP 9.14.1 update
    - ONTAP Bundle Update

    Tags: Data Management, Storage

    Published: 2024-03-07
    Length: 25 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DVDAT207
12. Selling ONTAP
    2024-03-06 | 22 minutes | Employees and Partners
    Details
    Selling ONTAP



    In this course, you learn how ONTAP software helps your customers simplify data management, access and protect their data across clouds, and future-proof their environments.
    Learning objectives:
    •Explain the value of ONTAP data-management software
    •Describe the features and benefits of ONTAP 9 software
    •Effectively position ONTAP software to your customers

    Tags: Data Management, Storage, Technical Sales, ThinkSystem

    Published: 2024-03-06
    Length: 22 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DDMO102
13. Family Portfolio: Storage
    2024-02-02 | 15 minutes | Employees and Partners
    Details
    Family Portfolio: Storage



    This course covers products in the Lenovo storage portfolio, from storage servers to direct-access storage through storage systems.
    After completing this course about the Storage family, the learner will be able to identify products within the family, describe the features of this product family, and recognize when a specific product should be selected.

    Tags: DataCenter Products, Storage, ThinkSystem

    Published: 2024-02-02
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: SXSW1201r16
14. Competing with ONTAP Fundamentals
    2024-02-01 | 16 minutes | Employees and Partners
    Details
    Competing with ONTAP Fundamentals



    Competing with ONTAP Fundamentals is intended to help sellers and partners be able to discuss the ONTAP Fundamentals license and how to position DM Series Storage with ONTAP Fundamentals versus competition.
    Objectives:
    Identify How to Position DM Series Storage with ONTAP Fundamentals Vs. Competition
    Discuss the ONTAP Fundamentals License

    Tags: Sales, Storage

    Published: 2024-02-01
    Length: 16 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSTOC100
15. ONTAP Data Protection Fundamentals
    2023-11-02 | 76 minutes | Employees and Partners
    Details
    ONTAP Data Protection Fundamentals



    In this course, we discuss the integrated data protection features in ONTAP data-management software. We also discuss the tools and software that you use to manage and monitor the data protection features. You learn about cluster peering, storage virtual machine (or SVM) peering, and data protection relationships. You also learn about the architecture and functionality of the Snapshot, SnapMirror, SnapVault, and SyncMirror technologies.

    Course DDMT203 – ONTAP SAN Fundamentals is a prerequisite.
    Course Objectives:
    •Describe the integrated data protection features in ONTAP data-management software
    •Identify the tools and software that you use to manage and monitor ONTAP data protection features
    •Describe cluster peering, storage virtual machine (SVM) peering, and data protection relationships
    •Explain the architecture and functionality of the Snapshot, SnapMirror, SnapVault, and SyncMirror technologies

    Tags: Data Management, Sales, Storage, Technical Sales, ThinkSystem

    Published: 2023-11-02
    Length: 76 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DDMT204r2
16. Lenovo DM Series Data Efficiency Guarantee
    2023-10-09 | 10 minutes | Employees Only
    Details
    Lenovo DM Series Data Efficiency Guarantee



    The Data Efficiency Guarantee offers Lenovo customers an agreed amount of capacity savings. If the Lenovo solution does not meet the terms agreed to in the Guarantee, Lenovo will remediate.

    Course Objectives:
    •Define the Lenovo DM Series Data Efficiency Guarantee
    •Understand how the guarantee works
    •Describe the sales process for delivering and tracking the guarantee

    Tags: Sales, Storage, ThinkSystem

    Published: 2023-10-09
    Length: 10 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DDMC100
17. ThinkSystem DM Series Technical 200 - ONTAP Data Management Fundamentals
    2023-10-03 | 90 minutes | Employees and Partners
    Details
    ThinkSystem DM Series Technical 200 - ONTAP Data Management Fundamentals



    This course focuses on enabling you to manage and provision ONTAP systems and it is part of the ISG Sales education supporting our ThinkSystem DM and DE Series education. Before taking this course, you should have completed the ThinkSystem DM and DE Series Overview as well as the ThinkSystem DM and DE Series Technical Overview 100. 200 level technical knowledge is provided separately for the DM and DE Series products.

    This course focuses on enabling you to do the following:

    - Describe the consumers of resources and management requirements
    - Describe the user and administrative roles that manage resources
    - List the various data management products you can use to manage ONTAP systems
    - Define the resources that are commonly provisioned
    - Describe various methods and tools that can be used to provision resources

    Tags: Storage

    Published: 2023-10-03
    Length: 90 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DDMT205
18. ThinkSystem DM Series Technical 200 - ONTAP Cluster Fundamentals
    2023-10-02 | 135 minutes | Employees and Partners
    Details
    ThinkSystem DM Series Technical 200 - ONTAP Cluster Fundamentals



    This course identifies and describes the components that make up a cluster. It also describes the supported cluster configurations and details the steps that are required to create and configure a cluster as well as discusses the physical storage components and the Write Anywhere File Layout file system, also known as the WAFL file system. Course DDMT200 – ONTAP Technical Positioning is a prerequisite.

    By the end of this course, you will be able to:

    -Identify the components that make up a cluster
    -Describe the cluster configurations that are supported
    -Create and configure a cluster
    -Describe the physical storage components
    -Describe the Write Anywhere File Layout (WAFL) file system

    Tags: Storage

    Published: 2023-10-02
    Length: 135 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DDMT201
19. Assessment for Lenovo ThinkSystem DM and DE Series Technical Overview 100
    2023-10-02 | 30 minutes | Partners Only
    Details
    Assessment for Lenovo ThinkSystem DM and DE Series Technical Overview 100



    This is the online assessment for the virtual-live course Lenovo ThinkSystem DM and DE Series Technical Overview 100 (DDMT100).

    Your objective for this assessment is to complete the 15-question quiz with the minimum passing score of 80%.

    Tags: Technical Sales

    Published: 2023-10-02
    Length: 30 minutes


    Start the training:
    Partner link: Lenovo Partner Learning


    Course code: DDMT101
20. ThinkSystem DM Series Technical 200 Assessment
    2023-09-28 | 15 minutes | Employees and Partners
    Details
    ThinkSystem DM Series Technical 200 Assessment



    This is the assessment for the DM Series Technical 200 training

    Tags: Sales, Storage, ThinkSystem

    Published: 2023-09-28
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DDMT206
21. VEEAM Solutions Sales Training
    2023-09-27 | 20 minutes | Employees and Partners
    Details
    VEEAM Solutions Sales Training



    In this course you will learn about Hyper-availability for the Always-On Enterprise.

    By the end of this training, you should be able to:

    Identify and explain the core products and solutions offered by Veeam.
    Explain the key benefits and value propositions of integrating Veeam solutions with Lenovo products.

    Tags: Sales

    Published: 2023-09-27
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSTOO100
22. ONTAP SAN Fundamentals
    2023-09-26 | 60 minutes | Employees and Partners
    Details
    ONTAP SAN Fundamentals



    In this course, you learn how ONTAP provides block access to a host by using SAN protocols. You learn about LUNs and how to map them to a host to enable read and write access. You also learn about multipathing techniques that can improve availability and performance.
    The course objectives are:
    1.Describe how ONTAP provides block access to a host
    2.Explain how SANs use the iSCSI, FC, and FCoE protocols to transport data between a host and storage system
    3.List the steps that are required to access a LUN in a storage virtual machine (SVM) from the host
    4.Describe multipathing between the host and a cluster

    Tags: Sales, Storage, ThinkSystem

    Published: 2023-09-26
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DDMT203
23. ONTAP NAS Fundamentals
    2023-09-25 | 45 minutes | Employees and Partners
    Details
    ONTAP NAS Fundamentals



    This course describes how ONTAP provides file access to clients. The course also explains how you use the NFS and SMB protocols to access files, how you access files over a network, and how you use load-balancing techniques to improve performance.
    Course objectives:
    1.Describe how ONTAP provides file access to clients
    2.Use the NFS protocol to access files
    3.Use the SMB protocol to access files
    4.Access files over a network and use the load-balancing features of ONTAP

    Tags: Sales, Storage, ThinkSystem

    Published: 2023-09-25
    Length: 45 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DDMT202
24. VEEAM Hyper-Availability Integration with ThinkSystem DM Series
    2023-09-20 | 20 minutes | Employees and Partners
    Details
    VEEAM Hyper-Availability Integration with ThinkSystem DM Series



    In this course you will learn about VEEAM Hyper-Availability for ThinkSystem DM Series

    Tags: ThinkSystem

    Published: 2023-09-20
    Length: 20 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSTOO300
25. VTT The Benefits of Scale Out Clustering with DM/DG - September 2023
    2023-09-12 | 60 minutes | Employees Only
    Details
    VTT The Benefits of Scale Out Clustering with DM/DG - September 2023



    In this course, you will know more about:
    - What is scale out?
    - Hardware benefits
    - Administrative benefits
    - Scale out Features

    Tags: Data Management, ThinkSystem

    Published: 2023-09-12
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVDAT204
26. Storage Masters - Unified Storage on DM Series
    2023-07-28 | 14 minutes | Employees and Partners
    Details
    Storage Masters - Unified Storage on DM Series



    Storage Masters is a multi-module education series. It is intended to help sellers and partners be able to discuss various storage topics that you will encounter in the field and how to position the valuable features of the DM Series within these conversations.

    By the end of this training, you should be able to:
    •Describe the business challenges resolved by the unified storage for the ThinkSystem DM series.
    •Learn about the technology implemented on the DM series of storage arrays.
    •Find out what are the benefits of the technology and positioning.

    Tags: Data Management, Storage

    Published: 2023-07-28
    Length: 14 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSTOT2006
27. VTT: SAP HANA Transition and Refresh Opportunity - July 2023
    2023-07-14 | 60 minutes | Employees Only
    Details
    VTT: SAP HANA Transition and Refresh Opportunity - July 2023



    In this session, we cover:
    - What Next for SAP Clients?
    - Lenovo Opportunity
    - Lenovo Portfolio for SAP Solutions
    - RISE with SAP

    Tags: Data Management, SAP, ThinkAgile, ThinkEdge, ThinkSystem

    Published: 2023-07-14
    Length: 60 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DVDAT202
28. Storage Masters - DM Series - Data Security
    2023-06-30 | 14 minutes | Employees and Partners
    Details
    Storage Masters - DM Series - Data Security



    Storage Masters is a multi-module education series. It is intended to help sellers and partners be able to discuss various storage topics that you will encounter in the field and how to position the valuable features of the DM Series within these conversations.

    Tags: Data Management, Storage

    Published: 2023-06-30
    Length: 14 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSTOT2005
29. Benefits and the positioning of Lenovo ThinkSystem file offerings with WEKA, DSS, and DM+ONTAP
    2023-05-08 | 10 minutes | Employees and Partners
    Details
    Benefits and the positioning of Lenovo ThinkSystem file offerings with WEKA, DSS, and DM+ONTAP



    Course objectives:
    1.Learn about file storage
    2.Understand the different types of storage
    3.Recognize the Lenovo data management portfolio

    Tags: Artificial Intelligence (AI), Storage, Technical Sales

    Published: 2023-05-08
    Length: 10 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSOLS207
30. Lenovo ThinkSystem DM and DE Series Overview
    2023-02-15 | 25 minutes | Employees and Partners
    Details
    Lenovo ThinkSystem DM and DE Series Overview



    This course focuses on enabling you to identify current business and technology challenges for your customers and position the ThinkSystem DM and DE series products, based on the needs of your customers.
    The main objectives are:
    •Identify current business and technology challenges for your customers
    •Position the Lenovo ThinkSystem DM and DE Series products based on the needs of your customers

    Tags: Sales, Storage, ThinkSystem

    Published: 2023-02-15
    Length: 25 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DDMO101r5
31. Storage Masters - DM Series Performance
    2023-02-15 | 15 minutes | Employees and Partners
    Details
    Storage Masters - DM Series Performance



    Storage Masters is a multi-module education series. It is intended to help sellers and partners be able to discuss various storage topics that you will encounter in the field and how to position the valuable features of the DM Series within these conversations.

    By the end of this course, you will be able to:
    •Understand the key business challenges that companies face with their data storage solutions
    •Describe DM Series features
    •Explain the benefit of DM Series features to customers

    Tags: Data Management, Storage, ThinkSystem

    Published: 2023-02-15
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSTOT2004r3
32. Storage Masters - Hybrid Cloud for DM Series
    2023-02-01 | 30 minutes | Employees and Partners
    Details
    Storage Masters - Hybrid Cloud for DM Series



    Storage Masters is a multi-module education series. It is intended to help sellers and partners be able to discuss various storage topics that you will encounter in the field and how to position the valuable features of the DM Series within these conversations.

    Tags: Storage

    Published: 2023-02-01
    Length: 30 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSTOT2003
33. ONTAP Fundamentals Bundle
    2023-02-01 | 15 minutes | Employees and Partners
    Details
    ONTAP Fundamentals Bundle



    ONTAP Fundamentals is intended to help sellers and partners be able to discuss the ONTAP Fundamentals license. By the end of this training, you should be able to position ONTAP Fundamentals within the marketplace; describe the ONTAP bundle; identify when to use the ONTAP Bundle in an opportunity; and determine when to use ONTAP Premium in an opportunity.

    Tags: DataCenter Products, Storage

    Published: 2023-02-01
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo
    Partner link: Lenovo Partner Learning


    Course code: DSTOF200
34. Lenovo DM Storage Series - Hybrid Cloud Solutions
    2022-11-04 | 15 minutes | Employees Only
    Details
    Lenovo DM Storage Series - Hybrid Cloud Solutions



    This course focuses on enabling you to:
    •Identify DM Series Hybrid Cloud Solutions
    •Describe features of the DM Series FabricPool capability
    •Describe features of the DM Series Cloud Volumes ONTAP capability.

    Tags: Cloud, Storage, Technology solutions

    Published: 2022-11-04
    Length: 15 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DDM201
35. Data Infrastructure Management - DM Series Storage
    2022-10-28 | 25 minutes | Employees Only
    Details
    Data Infrastructure Management - DM Series Storage



    This course provides a technical overview of the ThinkSystem DM series products. Course DDMO101 – Lenovo ThinkSystem DM & DE Series Overview is recommended prior to this course.

    By the end of this course, you should be able to:
    •Recognize the components of the Lenovo Data Management portfolio
    •Discuss the features of the Lenovo Data Management components
    •Describe the features of the SnapCenter software components

    Tags: Sales, Storage, Technical Sales, ThinkSystem

    Published: 2022-10-28
    Length: 25 minutes


    Start the training:
    Employee link: Grow@Lenovo


    Course code: DDM200

1-10 of 35 courses. Show All

For more information, see the following resources:

• Lenovo Data Center Unified Storage product page
  https://www.lenovo.com/us/en/c/data-center/storage/unified-storage
• Lenovo Data Center Solution Configurator
  http://dcsc.lenovo.com
• ThinkSystem DM Series documentation
  http://thinksystem.lenovofiles.com/storage/help/topic/ontap_software/overview.html
• ONTAP Ransomware Protection
  https://thinksystem.lenovofiles.com/storage/help/topic/ontap_anti-ransomware/anti-ransomware.pdf
• Lenovo Data Center Support - ThinkSystem DMxx00F
  https://datacentersupport.lenovo.com/us/en/products/storage/lenovo-storage/
